Description

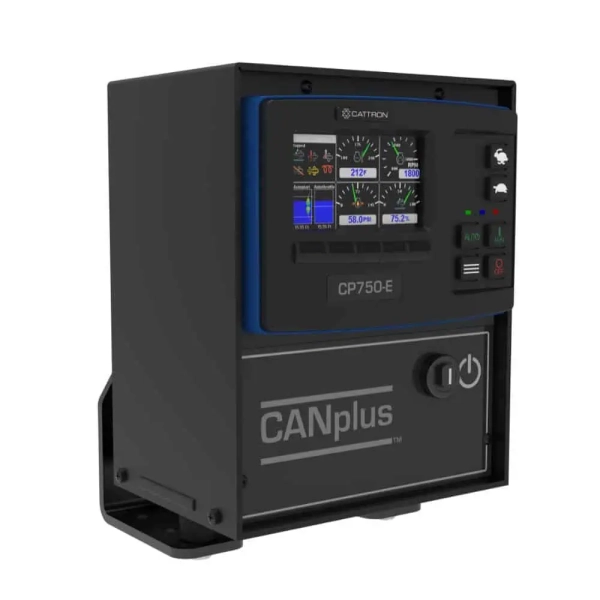

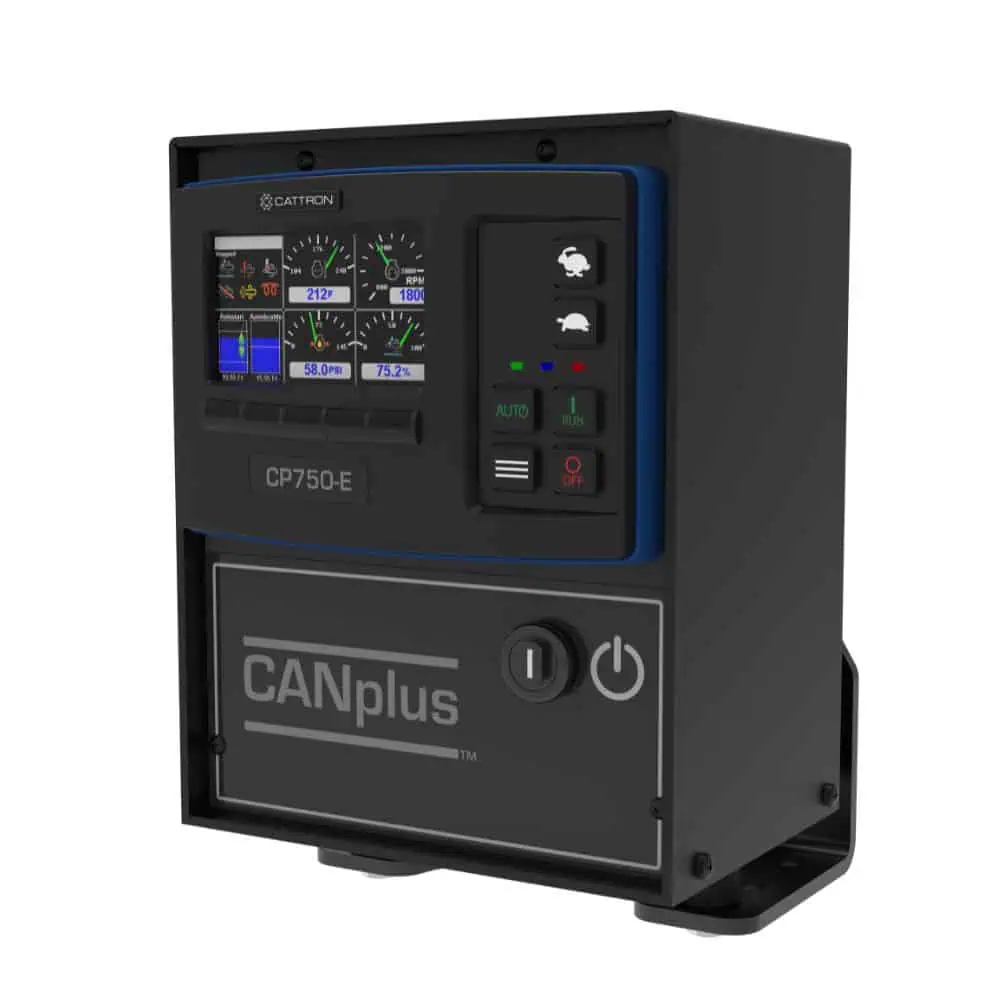

The CANplus™ CP750-E is an enhanced engine control panel with nine inputs and six outputs. It supports manual or autostart operations on electronically or mechanically governed engines and electric motor-driven equipment.

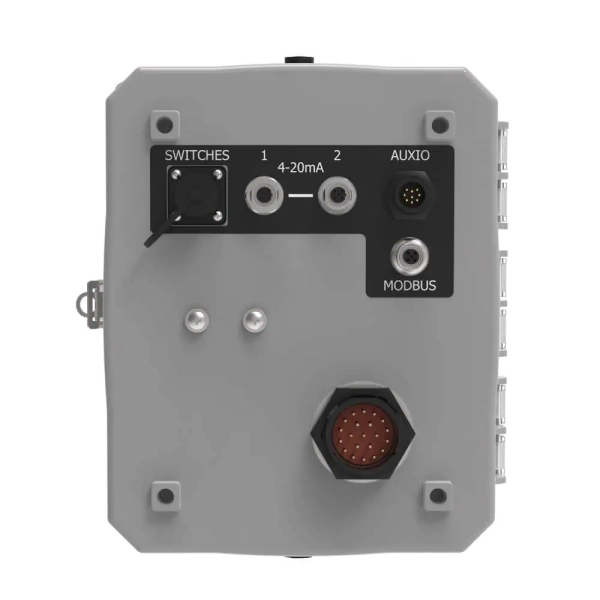

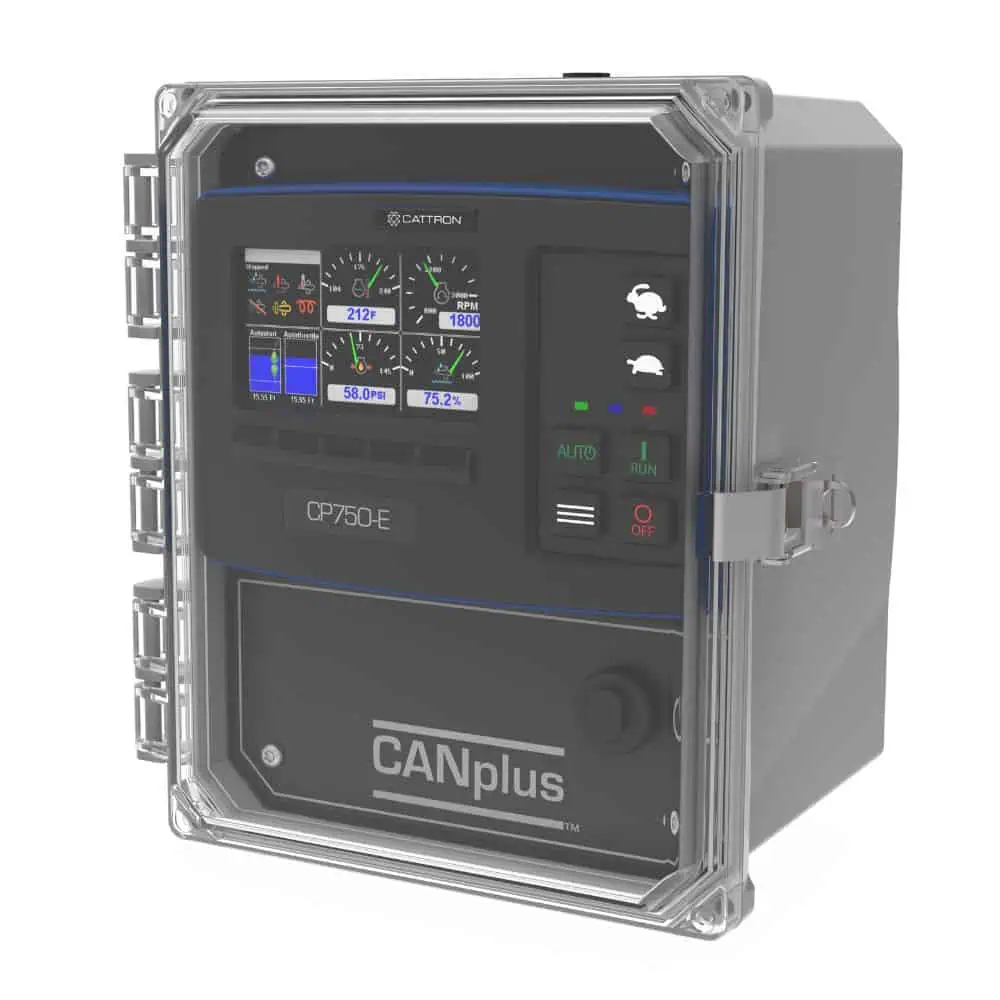

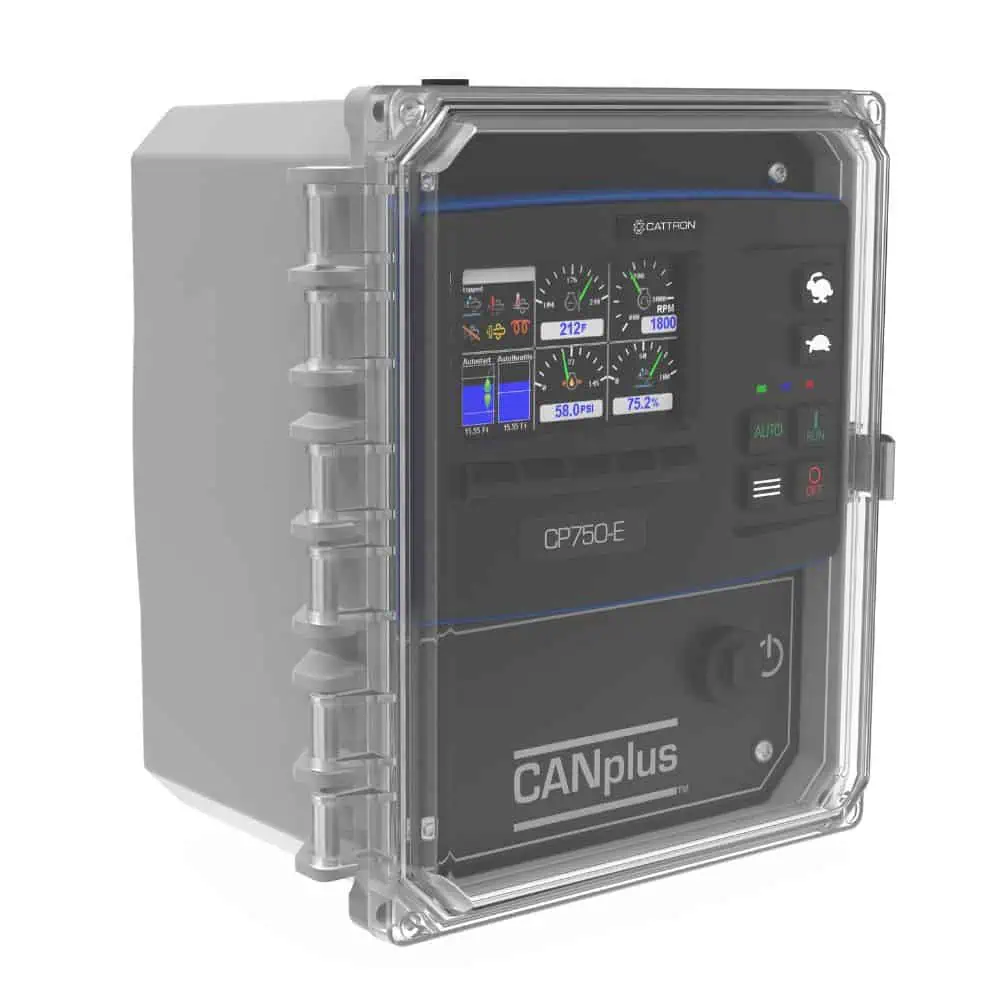

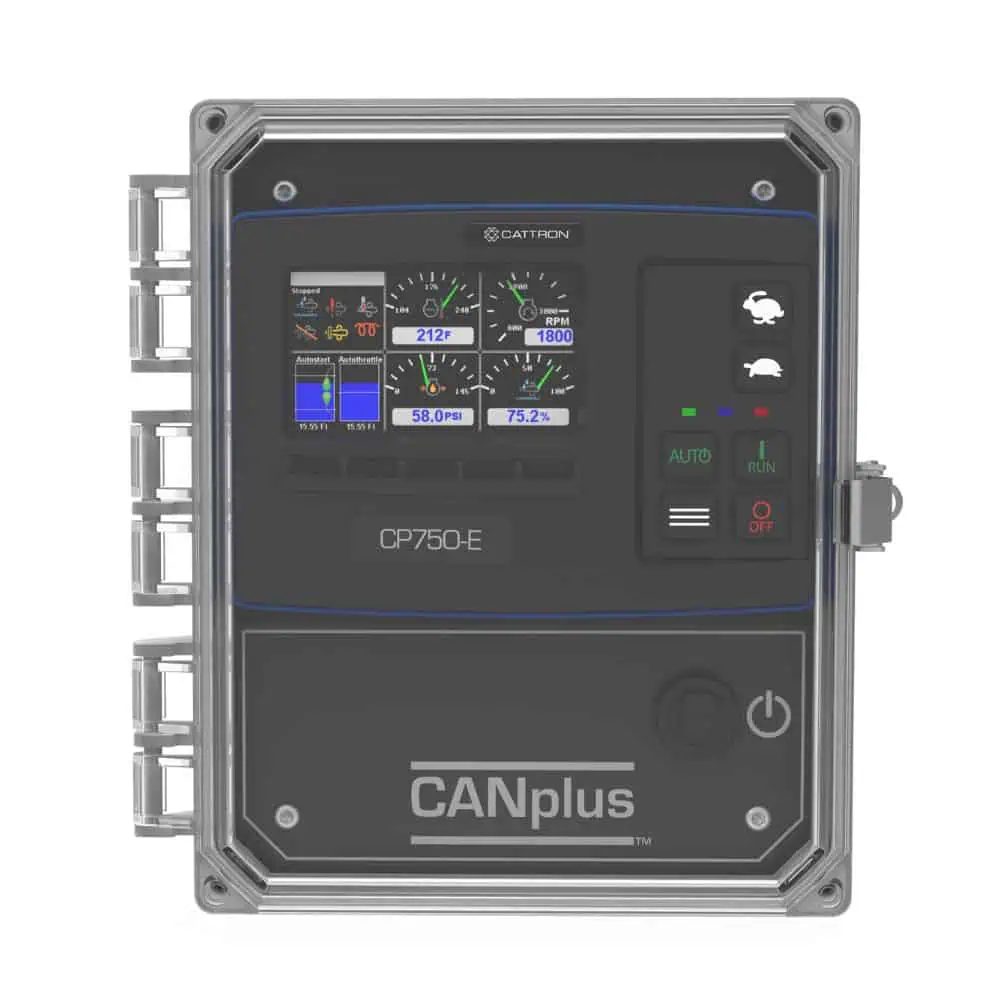

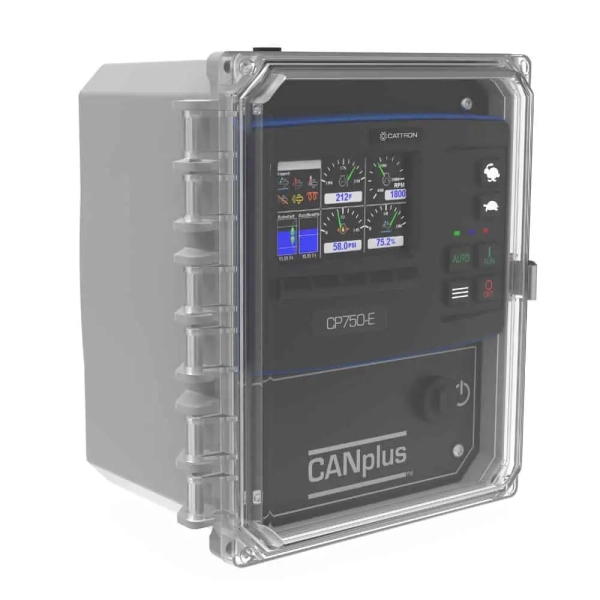

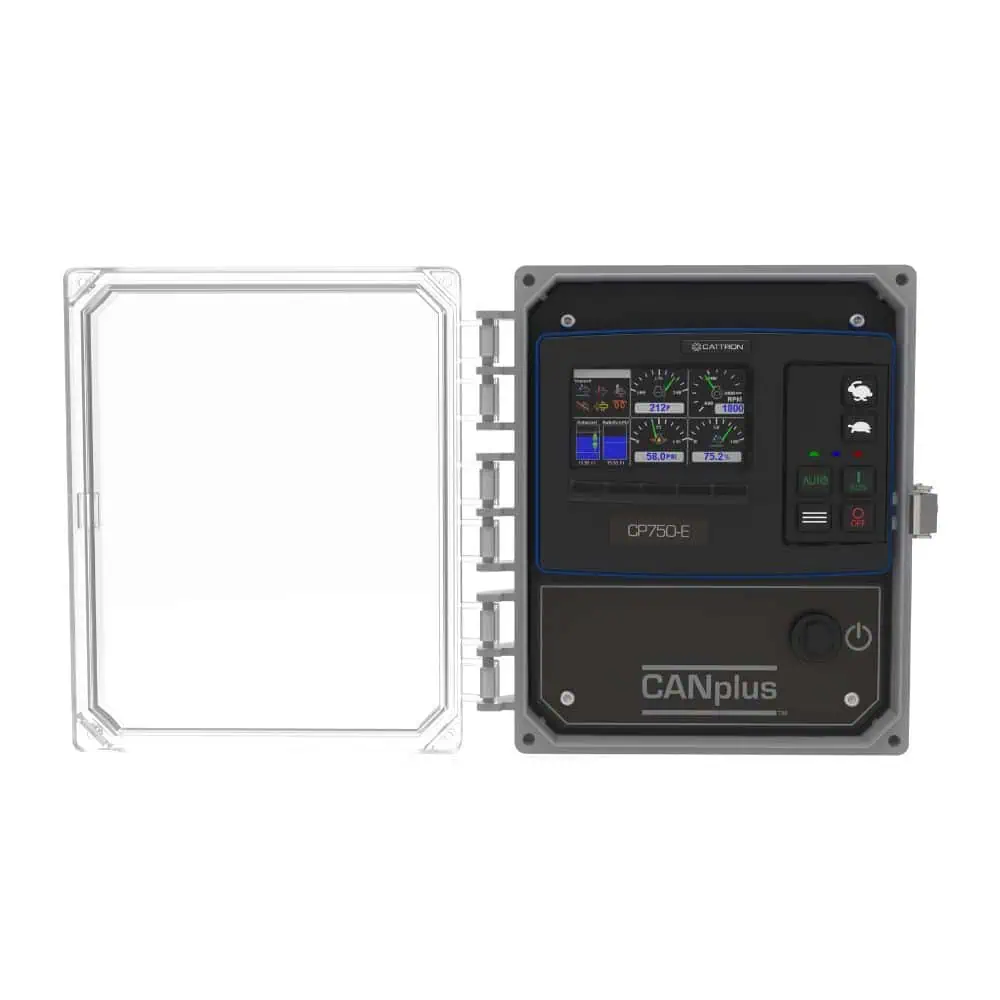

The panel comes in your choice of an Aluflex or NEMA enclosure.
It is typically used to measure floats, suction and vacuum pressure, discharge pressure, water level, and flow, and it supports multi-pump applications. It is a direct replacement for the legacy CANplus CP750.

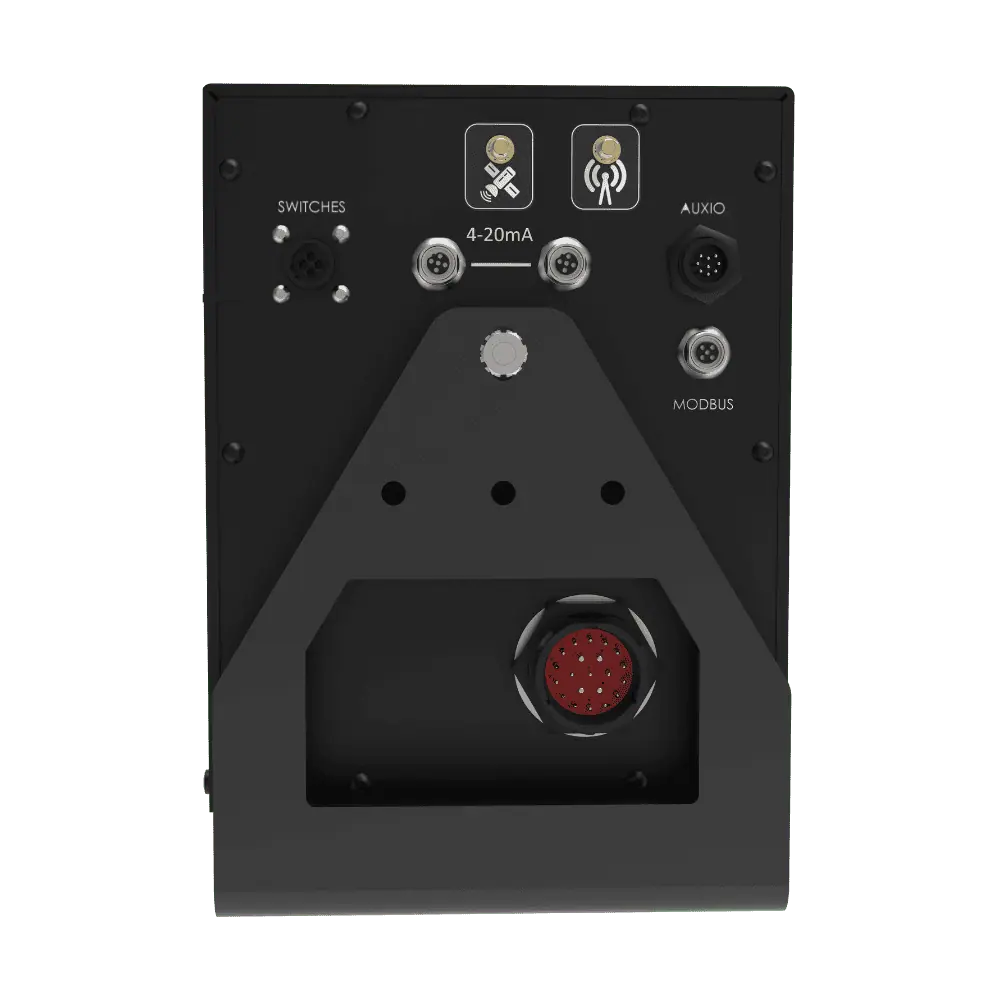

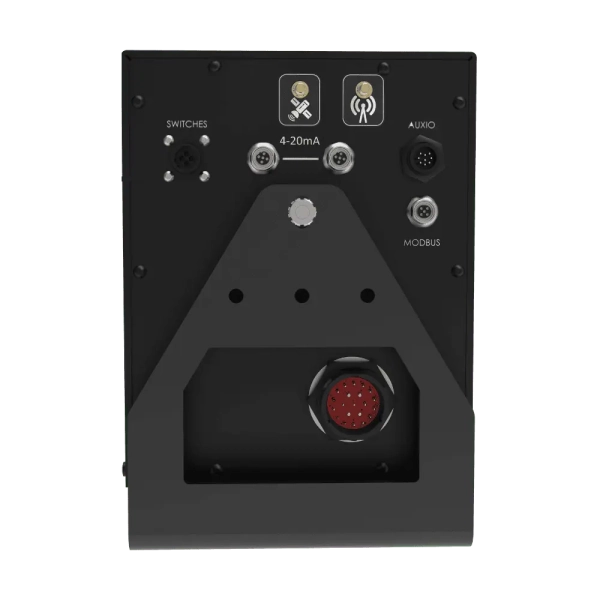

The panel offers optional integrated LTE communications, allowing remote tracking, monitoring, and control. It supports CANbus J1939 and Modbus RS-485 messages.
Powered by RemoteIQ™, the CP750-E offers machine learning to detect patterns, analyze data, and troubleshoot issues, including cavitation detection. By learning what normal operations look like for your specific application, RemoteIQ can alert operators when the panel is no longer within the normal range, improving operations and efficiency.
It also supports QR-Assist, which generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolutions.
Display

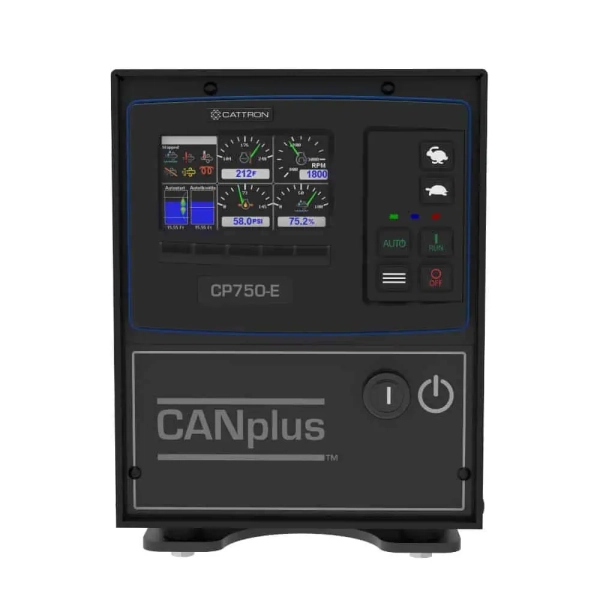

Intuitive, user-friendly menus are accessible via sunlight-viewable high-resolution 4.3” WQVGA color display
CANplus Control
Patent-pending advanced throttling and control capabilities
Outputs
Two 10A power outputs (starter & ECU), two 1A outputs (one for pre-heat), and two 1A transducer power outputs
Inputs
Four switched inputs, two 4-20mA transducer inputs, and three resistive sender inputs
Machine Learning
Detect patterns, analyze data, and troubleshoot issues, including cavitation detection
QR-Assist
The display generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolutions.
Event Manager
Can fully control engines based on configurable criteria – four digital inputs, two 4-20 mA analog transducer inputs, a battery-backed real-time clock or a combination of criteria
Configuration
Host USB port for configuration and updates using menus or through a Windows-based configuration program
Interface
- CANplus J1939
- Modbus RS-485
Autothrottle Maintain Point
Configurable 4-20mA transducer target values to dynamically throttle the engine to maintain a level
Autostart
Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24Ă—7 scheduled run, and countdown-to-off timer
Autothrottle Profile
Configurable seven-stage autothrottle profile
RemoteIQ™ QR-Assist™ – Fault Diagnostics for CANplus™ Panels and the DynaGen™ 200 Controller
Instant Support & Diagnostics at Your Fingertips
QR-Assist™ is a patented, software-based diagnostic tool that supports CANplus engine control panels. This innovative tool provides instant access to a comprehensive database of technical system faults and customized, proven solutions, empowering users to resolve issues quickly and effectively.
Effortless Use and Powerful Benefits
A key feature of QR-Assist is its seamless integration with CANplus panels and the DynaGen 200 controller. Accessible via smartphones and tablets with a simple scan, QR-Assist eliminates the need for bulky equipment, complex setups, and lengthy troubleshooting procedures – all thanks to the high-resolution color displays on our advanced engine control solutions.
The display generates a unique QR code when a fault is detected within the engine. By simply scanning the code, users can receive valuable engine diagnostic data, including detailed descriptions and causes of the problem, step-by-step troubleshooting guides, and relevant technical solutions directly from linked OEM websites.
QR-Assist streamlines the process, enabling quick identification of faults and initiating appropriate troubleshooting measures, minimizing downtime, and making maintenance and repairs more manageable.
Say goodbye to downtime and hello to a more efficient and reliable diagnostic experience. Experience the future of troubleshooting with QR-Assist.
