Description

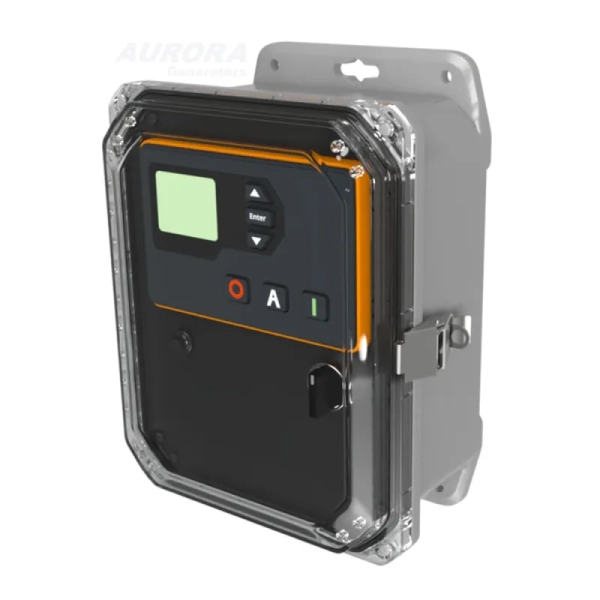

TR100 Remote Panel
The DynaGen TR100 remote panel is designed to monitor, protect, and control generators. It uses the DynaGen TR100, which is similar to the TG410 controller but has specific firmware that allows it to act as a secondary device to operate your generator.
This device utilizes J1939 communications and is designed to work with an existing DynaGen genset controller. It can be used from a distance of up to 125 feet from the generator. The device mimics the functions of the generator controller and is typically employed when the operator requires complete control without being physically present near the generator.
The enclosure is water-resistant and can be used outdoors in rain or snow. It features a transparent door for easy viewing while protecting the electronics inside.
Wiring is simple, requiring only a shielded 3-wire cable for the J1939 data communication and generator battery power for a local power supply, if needed.
Enclosure Specifications
- UL & cUL Listed (File E352997)
- NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12 & 13 rated
- Meets IP65, IP66, IP67 & IP68 specifications based on NEMA/UL Type rating conversion
- Impact-resistant polycarbonate
- Designed for outdoor use
- Clear cover
- Weatherproof and waterproof
- Hinged cover with stainless steel latches
- Area for a padlock
- Screw-on flange for surface-mounting
