Throttle Pull Actuator

Throttle Pull Actuator

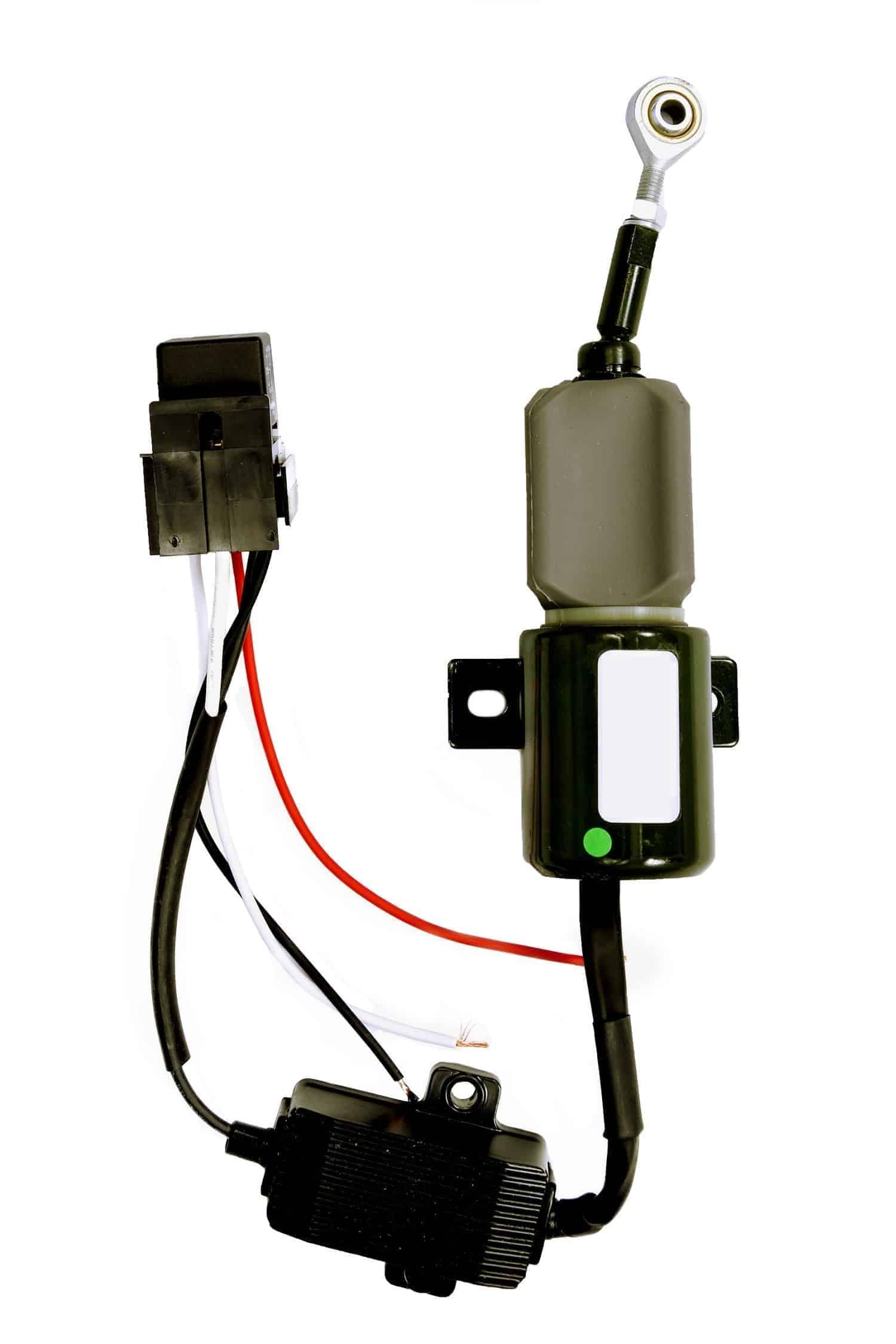

Our Throttle Pull Actuator is a simple, low-cost actuator meant to pull an engine throttle lever high or low. It’s rated for 12V use, draws 50A for 0.7 seconds to pull, then holds with 1A current draw. It has a 1″ stroke, pulls with 11 pounds-force, then holds at 36 pounds. The actuator is packaged with a driver, and socketed relay with wire leads ready for you to plug-in power, ground, and a pull signal.

SKU: A1A0022A Categories: ,

Description

PN: A1A0022A
Our Throttle Pull Actuator is a simple, low-cost actuator that pulls an engine throttle lever high or low.
It’s rated for 12V use, draws 50A for 0.7 seconds to pull, and then holds with a 1A current draw.
Our throttle pull has a 1″ stroke, pulls with 11 pounds of force, and then holds at 36 pounds. The actuator is packaged with a driver, and socketed relay with wire leads ready for you to plug in power, ground, and a pull signal.

Downloads

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

Download [126.13 KB]
