Description

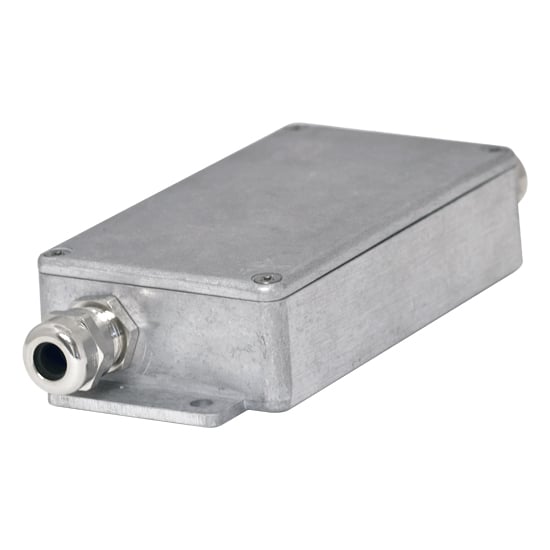

RX/TXD
4-in-One Splitter, Repeater, Converter, and Tester
4-in-one unit that can be configured as a level changer, signal converter, line repeater, splitter, or tester.
The RX/TXD is a 4-in-one unit that can be configured as a level changer, signal converter, line repeater, splitter, or tester. Meets CE/EMC standards for immunity and emissions
- Various voltages available
- Encoder tester/verifier
- Enclosed housing
- DIN rail mount
- Long-distance data transmission
- Converting between common signal types
- Turning one signal into two
- Providing proper signal termination
RX/TX
Splitter – Repeater – Converter
Splitter, Repeater, Converter
Splitter has one input and two separate output channels, and two types of inputs are available: differential line receiver, where differential input signals (A, A’, B,B’,Z,Z’) are split into two identical differential output channels.
Converter converts a Push-Pull or NPN encoder output to an RS422 compatible differential Line Driver output.
Repeater retransmits signals from an encoder output to drive signals over a longer distance with reduced noise and distortion-free waveforms.
