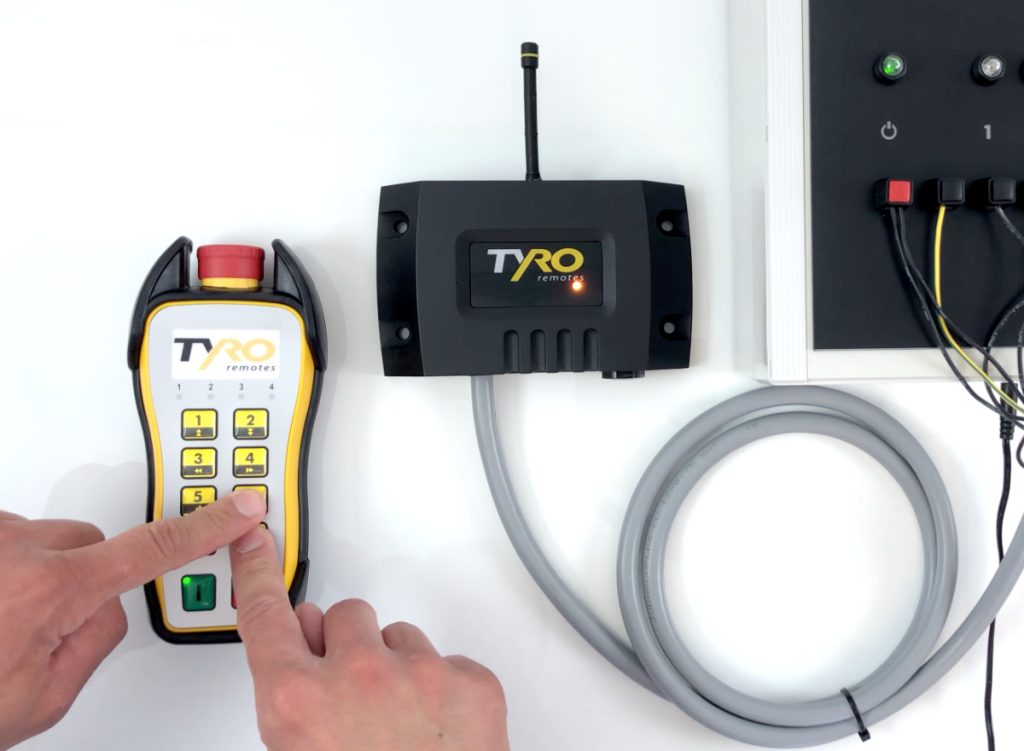

Do you need help with pairing your Tyro radio remote control system? Please select your set and view the tutorials below in written text or as an instruction video.
There is an easy instruction available for every transmitter/receiver combination. To select the correct instructions the receiver unit is leading. The sticker on the receiver housing indicates exactly which system you have. Search for: ‘Type’ on the sticker.
Do you have any questions or queries about pairing your transmitter?
*The images shown may differ from your setup.
Select your combination:

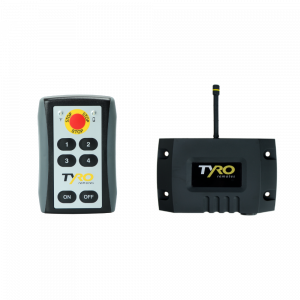

 Musca / Aquarius |

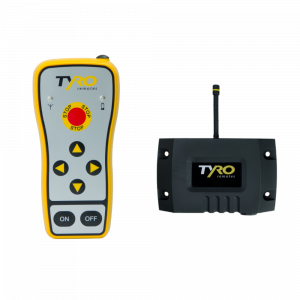

 Sedna / Aquarius |

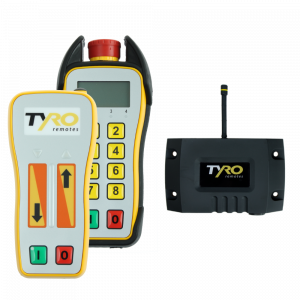

 Pyxis / Aquarius |
|

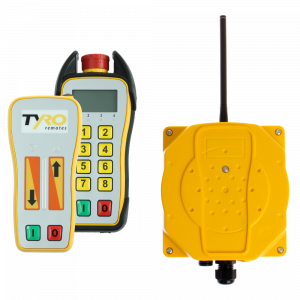

 Pyxis / Auriga |

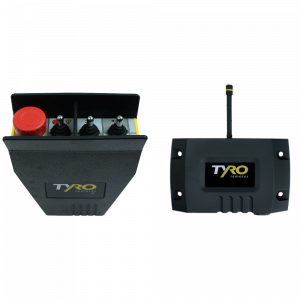

 Fornax / Aquarius |

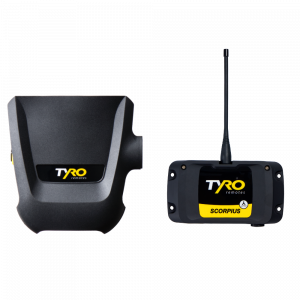

 Fornax 2S / Scorpius 2S |

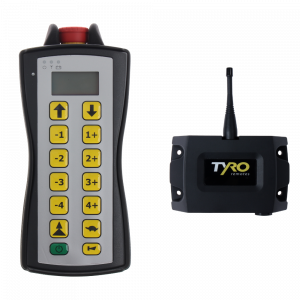

 Cetus / Aquarius 20F |

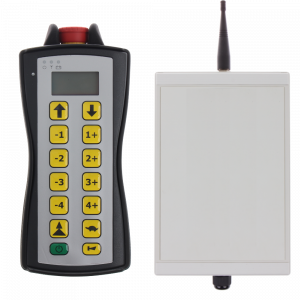

 Cetus / Norma |

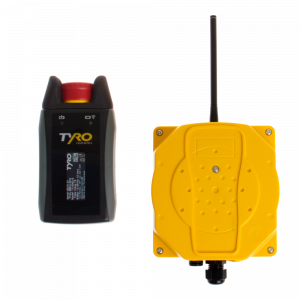

 Indus / Gemini |

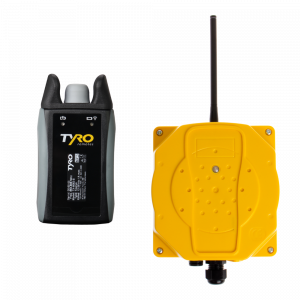

 Taurus / Gemini |
Can’t find your set? |
Programming the Repeater radio
Corresponding transmitters: Musca, Sedna, Pyxis, Corvus, Libra, Cetus, and the Remote Starter.
Radio repeater: teach-in a transmitter in 10 simple steps
- Unscrew the enclosure of the Tyro Radio Repeater
- Disconnect the battery
- Press the white button on the PCB and keep it pressed during the next steps
- Reconnect the battery
- Switch on the transmitter
- Release the white button
- Turn over the Radio Repeater and check if it has been programmed
- The LED on the Radio Repeater will light up when you give commands with the remote control
- Close the Tyro Radio Repeater enclosure and screw it tight
- The system is ready for use
- Repeat the above steps to teach-in multiple transmitters to the Tyro Radio Repeater.
- To erase all transmitters from the system, disconnect the battery, press the white button, reconnect the battery and press the white button for at least 10 seconds.
The white button (click for a larger image)
