Description

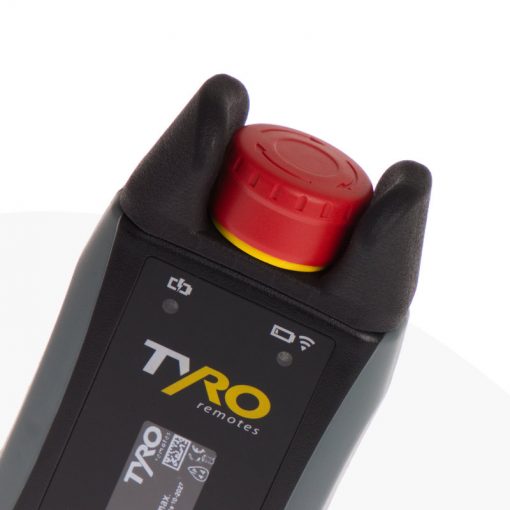

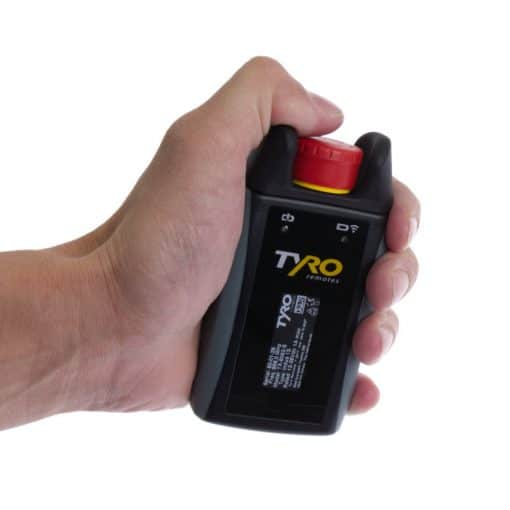

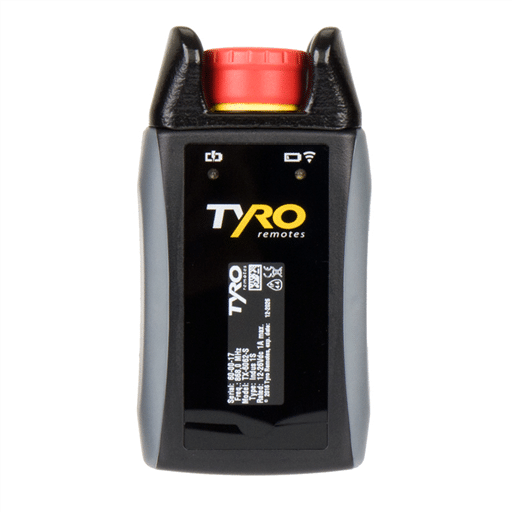

The E-Stop button operated from a distance
This is an additional possibility for stopping your production lines or multiple machines simultaneously. The Indus AQ is not meant to replace an existing (emergency) stop system. However, the Indus 1SÂ wireless emergency stop meets all the requirements of the PLC machine guidelines.
Developed for conveyor belts and other electric control systems
The wireless stop button is developed for conveyor belts, winches, pumps, and hydraulic or electric control systems. The radio remote control sends a signal when the stop button is pressed. With the Indus AQ, you can program up to a maximum of 54 transmitters on one receiver.
The Indus AQ uses the 868 MHz frequency (broadband) and has a range of 600 meters in the open field.
| Protective cover | Optional |
|---|---|
| Degree of protection | IP65 |
| Out-of-range protection | – |
| Certification | CE |
| Belt clip | Standard |
| Frequency | 868 MHz |
| # Function-keys (excl. ON/OFF & E-stop) | – |
| Weight | 189 g |
| Charging time | – |
| Modulation | Broadband |
| Charger | 230 Vac Adapter, or 12/24 Vdc charging cable (standard), charging dock (optional) |
| Reaction time | < 0.1 s |
| Safety category | – |

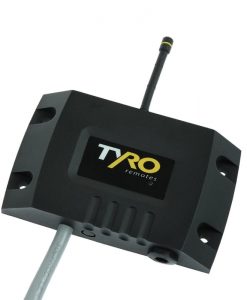

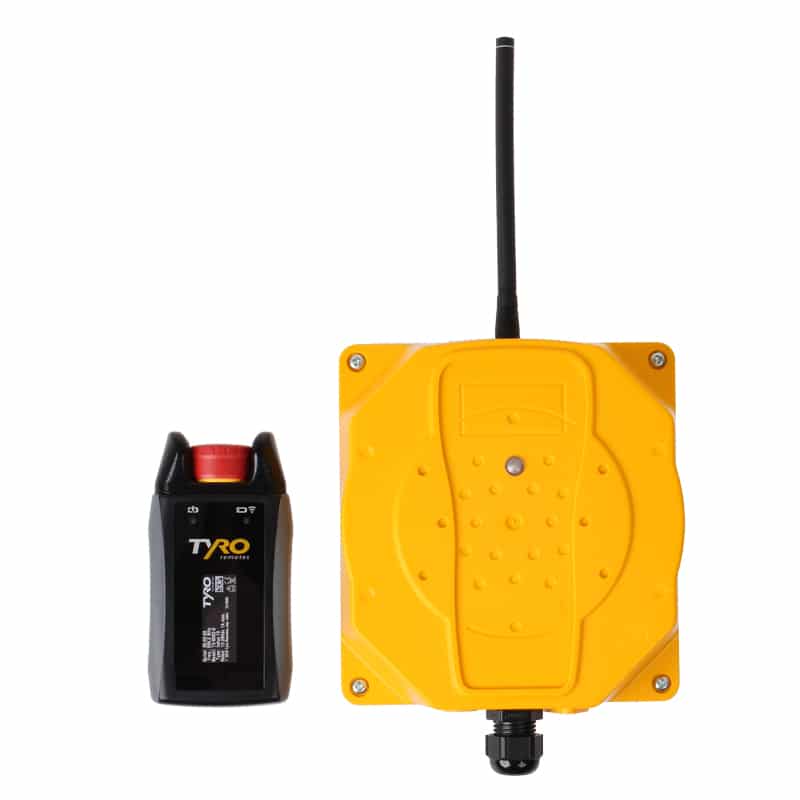

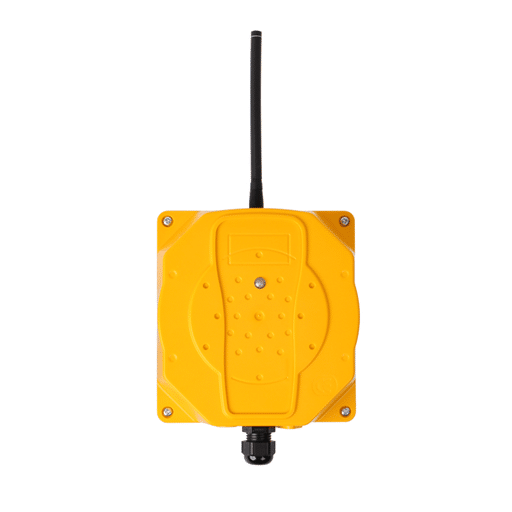

The following receivers can be combined with this remote control:
