Description
Keeping an eye on lengths and angles

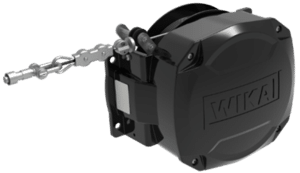

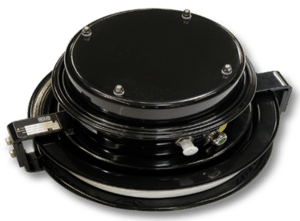

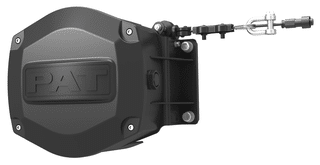

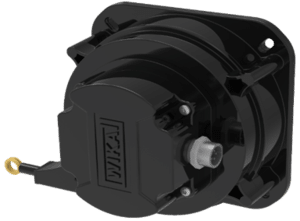

Choose the right sensor for your application from the entire range of configurable gSENS LWG sensors. The precise sensors can measure both, lengths and angles, and are available with different housings, cable types, and signal transmission technologies.
At a glance
- For telescopic lengths up to 55 m
- Individually configurable
- Easy installation
Highest safety standards

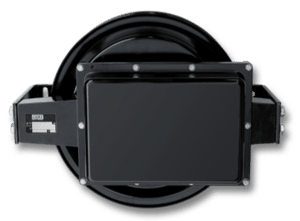

Future-proof thanks to CANopen Safety: The gSENS LWG types 2xx, 3xx, 5xx, 92x, and 95x meet
the latest safety requirements, while enabling the highest availability at the same time!
 |
|
Specifications
- Length range: up to 55 meters
- Angle range: -90° to + 90° / -180° to +180°
- Output signal: CANopen safety/ CANopen/ 4…20mA
- Supply voltage: 8…30V DC/ 9…36V DC / 16…30V DC / 10…30V DC
- Protection class: IP66/67/ IP66/ IP65
- Temperature range: -40°C to +85°C
Measurement range of length (m)
Specification of the gSENS LWG multiwire cable that is needed for
measuring.
The reserve part of the gSENS LWG cable with a length of 3 drum
rotations do not have to be added to the measuring range and are
not taken into consideration.
Any additional length of the gSENS LWG cable has to be specified in
the next configuration step.
