Description
P/N A3B270SC
A low-cost, highly flexible radio remote control for many proportionally controlled hydraulic applications with CAN J1939.
This system will work with nearly any electro-hydraulic valves, CAN controllers, or other PLCs and provides extra switches for auxiliary functions.

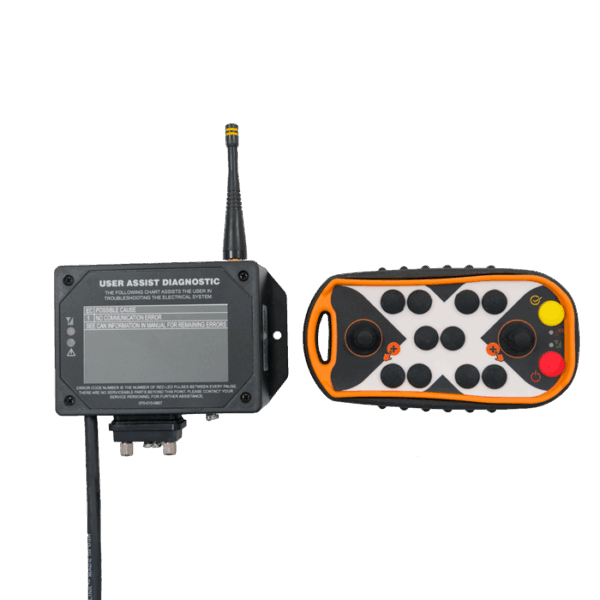

This kit includes the following parts:
| A3B2702C | MEGA series radio transmitter with two dual-axis proportional (variable-speed) joysticks, 10 pushbuttons, power, and enable buttons |
| A3B2707A | VC134 radio receiver with J1939 for all inputs from the Transmitter. Each CAN J1939 message can be configured for PGN, Period, Source address, and Priority using the GATE Diagnostic and calibration tool. |
NOTE: Programming this system to suit many custom needs will require the additional purchase of one of our GATE or PALM Diagnostic Tools.
Please contact our sales team for more information. The system will ship with full manual and installation drawings.
Transmitter:

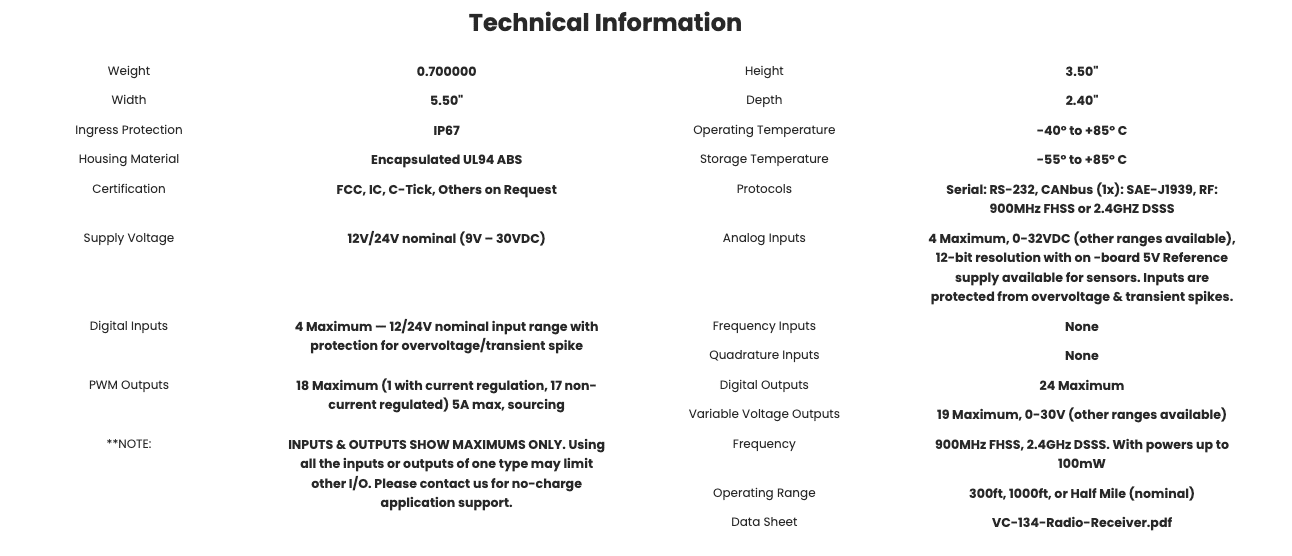

Receiver:
Receiver:
