Description

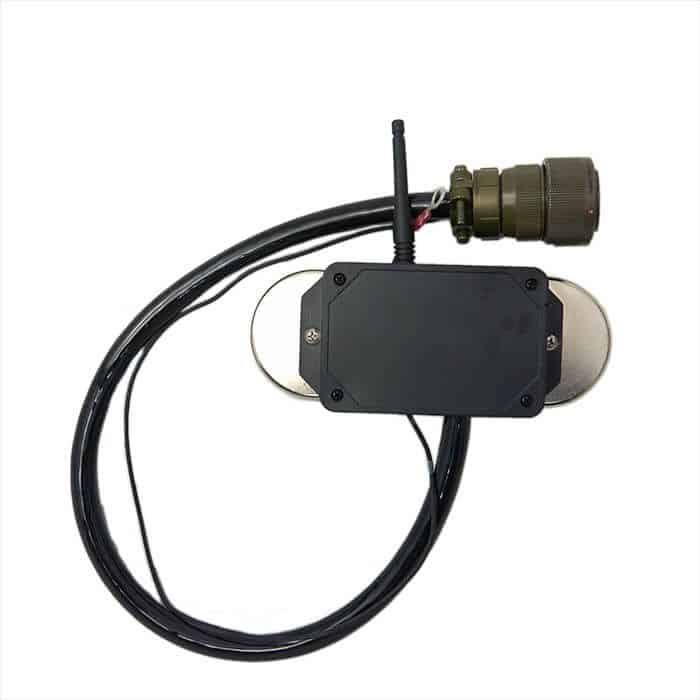

Plug-and-Play Replacement Remote
This versatile remote is designed to directly replace wired pendants with 3 or 4 switches, or Omnex wireless on/off remotes, on Auto Crane models 3203PR/PRX, 4004EH, 5005EH, and 6006EH.
Quick Compatibility Check
Momentarily connect Pin D to Pin J on the crane-side connector. If the pump energizes, you’ve got the correct system.
Direct Replacement For
Auto Crane P/N: 680179100, 681179000, 460157000, 460158000Â Â also P/N: A310167A
• P/N A3A0369E: 19-pin quarter-turn Canon plug with power on Pin D and pump on Pin J
• P/N A3A036EE: 19-pin quarter-turn Canon plug with power on Pin D and pump on Pin JP/N (see below)
Autocrane 19 Pin On/Off Wireless System (Power on Pin L/Pump on Pin K)
This Plug and Play remote can easily replace wired pendants with 3 or 4 switches on Auto Crane models 3203PRX, 4004EH, 5005PRX and 6006EH with 19 pin quarter-turn Canon plug with power on Pin L and Pump on Pin K. It easily mate with Autocrane receptacle assembly P/N: 680081.
Quick Compatibility Check
Connect pin L to K on the crane side connector momentarily. If pump is energized this is the correct system.
