The 9-Button Potentiometer MEGA system is perfect for remote control of sewer cleaners, lube trucks, belt conveyors, and hose reels. Perfect for any application that requires one proportional and 9 on/off functions.
- The receiver supplies 0 to 5 volts DC controlled by the potentiometer and 9 On/Off outputs controlled by the buttons.
- The analog output can be used in conjunction with our valve drivers to control many different proportion valves.
- The on/off outputs can be used to control on/off valves and auxiliaries like the horn, throttle, and engine start/stop.
- The Gate Wi-Fi tool is used for Diagnostics and calibration. Like all our products this is available with custom button labels to match your application. Contact our sales team for details!

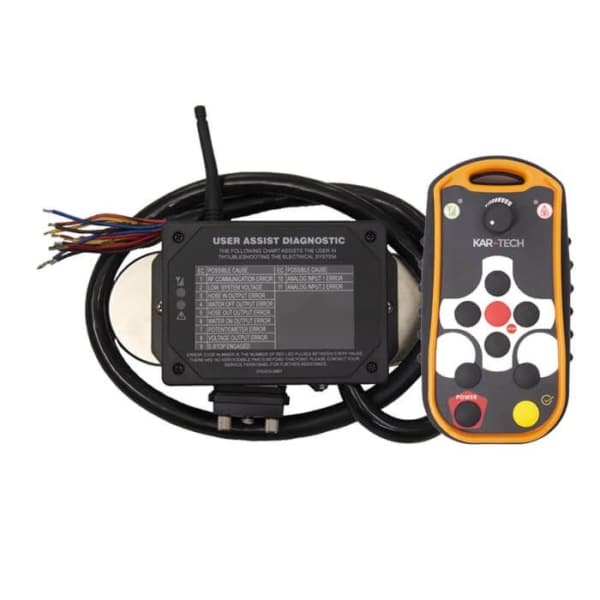

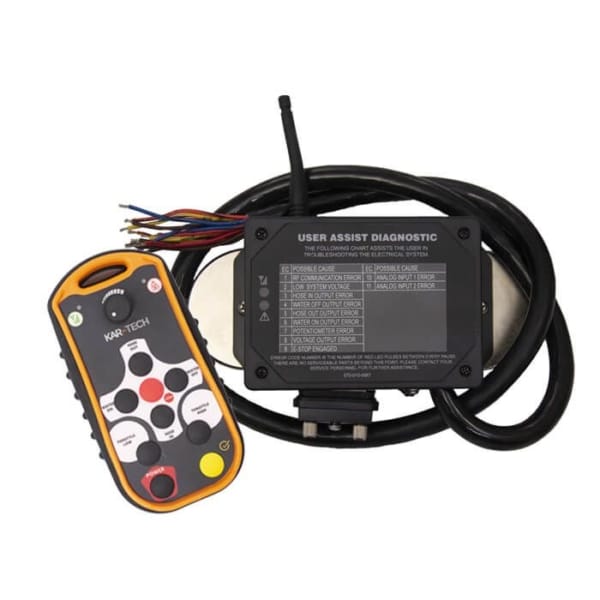

This kit is comprised of the following parts:

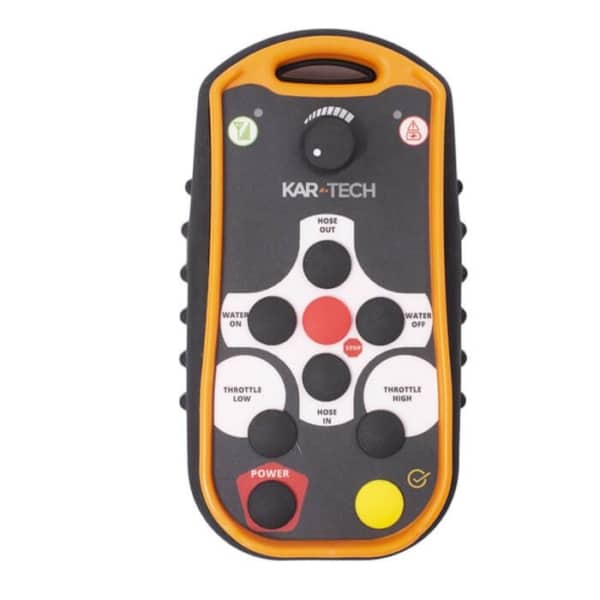

- 9 Button w/ Potentiometer MEGA Transmitter 3B2802A
- 9 Button + Potentiometer MEGA Transmitter 3B2806A
- 9 on/off + 1 Analog outputs 900 MHz Receiver
All wireless transmitter and receiver pairs ship ID’ed together with all outputs factory preset as momentary.
Custom decals are available upon request.
