Wireless 2.4 E-Stop Systems

Description

With our 2.4 GHz mesh E-Stop remote control, you can control up to 10 pieces of equipment in real time with one wireless emergency stop transmitter or a combination of ten transmitters and receivers.  This combination allows you to set one transmitter to one receiver, three transmitters to 7 receivers, or five transmitters to five receivers for multiple operators and multiple equipment use.

They are designed to meet the rigorous requirements
for Safety Integrity Level (SIL) 2 based on the IEC61508 standard.

Our wireless emergency stop system starts with a receiver with two independent solid-state sourcing outputs rated for 5A each.

The first output is normally ON and turns OFF in an E-Stop condition. It’s reset to an ON condition when the E-Stop switch is returned to neutral/safe.

The second output is normally ON and turns OFF in an E-Stop condition but requires recycling machine power after returning to a safe position to clear the output. The mobile DC receiver takes 9 – 30VDC and is epoxy potted for total protection. The Industrial receiver was designed with two from A relays rated at 6A each and comes with a 110-240 VAC power supply.

Because the name of the game is safety
Redundancies are at both the transmitter and receiver.

The transmitter uses two normally closed switches wired in series for redundant protection, and the receiver uses the third output to activate the two main outputs. We then offer a choice of four different transmitters –

1. 1. 1. Small pocket-clip wireless emergency stop switch that’s vertically actuated,
      2. Larger, belt-worn wireless E-Stop switch that’s vertically actuated, and
      3. Horizontally actuated wireless kill switch, and
      4. Wall-mount unit.

Important to note: these are all two-way radios in a mesh configuration so that the operator has a real-time indication of machine issues and radio link status!

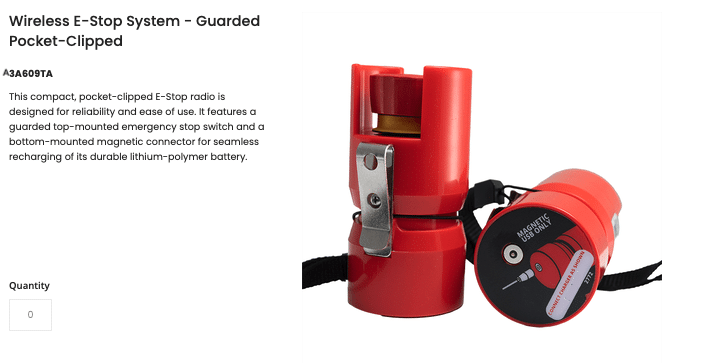

Wireless E-Stop System – Pocket-Clipped – A3A548AB

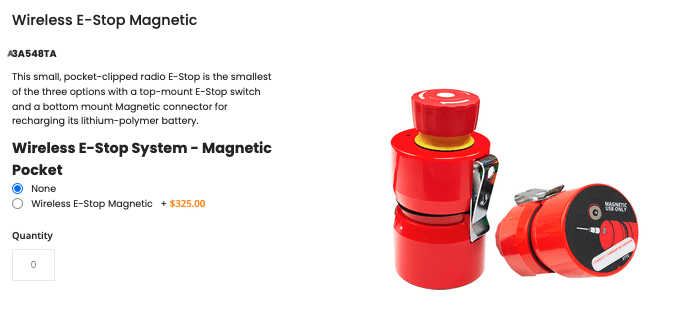

Wireless E-Stop Magnetic – A3A548TA

Wireless E-Stop MEGA Transmitter – A3A5482B

Wireless E-Stop Wall Mount Transmitter – A3A548NA

Wireless E-Stop QUANTUM Transmitter – A3A5489B

Industrial AC Wireless E-Stop Receiver – A3A548GA

DC Wireless E-Stop Receiver – A3A5483A

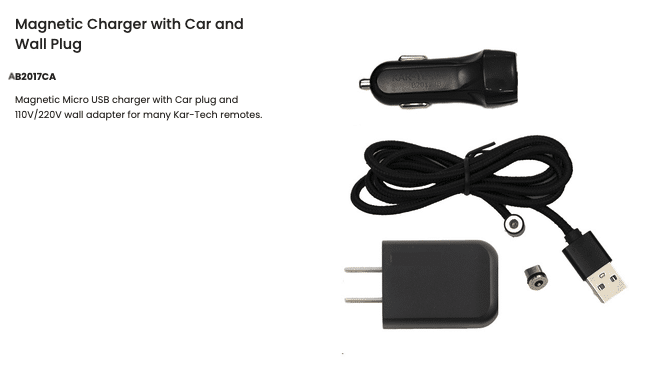

Micro USB Car Charger – AB20173B

Micro USB Wall Charger – AB20172A

Universal AC Power supply – A202-015-0210

27″ Antenna Extension Cable – A020-900-0027
