Description
P/N A3B270CC
A low-cost, highly flexible radio remote control for many types of proportionally controlled hydraulic equipment.
This system will work with Danfoss PVG32 (and other ratiometrically controlled) valves, and provides extra buttons for auxiliary functions.
✓ Off the Shelf System
This kit includes the following parts:
A3B2703C |
MEGA series radio transmitter with two single-axis proportional (variable-speed) joysticks, 10 pushbuttons, power, and enable buttons |
A3B256QB |
VC-144 radio receiver with 6 Analog outputs (0 to 90% of supply voltage) or ratiometric, 18 on/off or PWM, 6 current-regulated proportional outputs, and J1939 CANbus for all I/Os. All outputs are sourcing and configurable for all joysticks and switches – providing up to 1,000′ of wireless range.
NOTE: This receiver requires the GATE Diagnostic Tool for configuration and programming using smartphones, tablets, or computers. |
A011444A |

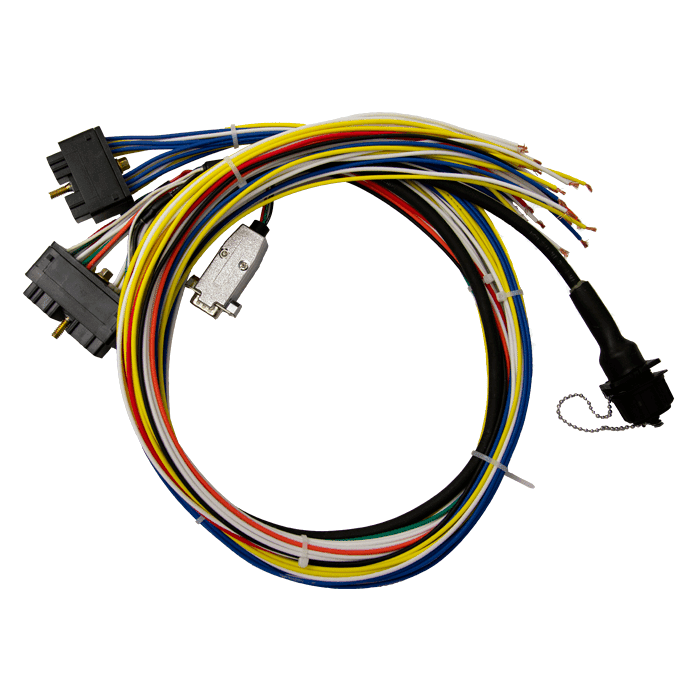

3 ft. pre-made external wiring harness with CAN and Serial port connectors |
