Dynagen TG350 Engine and Generator Controller

The DynaGen™ TG350 is a generator controller that supports three-phase voltage metering for generator applications. It provides autostart operations for mechanically or electronically governed engines. It is ideally suited for mobile or stationary equipment where reliability is critical.

Description

GSC300 has been discontinued and is no longer available. The TG350 is the recommended replacement

Standard or Electronic Engines

The TOUGH series controllers are designed to provide complete control, protection and engine instrumentation for both standard and electronic engines. The module is easily configured using either the front panel buttons or our PC configurator software. TOUGH series controllers are ideally suited for severe duty applications where reliability is critical such as engine-powered pumps and industrial compressors. UL/CUL Listed.

Displays:

Oil Pressure
Engine Temperature
Fuel Level
Oil Level
Hour Meter
RPM
Real-time clock display with time/date
Battery Voltage
J1939 DTC codes with custom text
Two customer-defined parameters
(temperature, pressure, voltage, levels)

Highlights:

Three-phase volt metering
Tier 4F and Euro Stage V compliant
Supported by RapidCore™ configurator software
Complete plug-n-play package option
Private label option
Five-year or 17,500-hour warranty

Features and Functions:

SAE J1939 CANbus Protocol
Support for J1939 engine manufacturers (Volvo, John Deere, Cummins QSB5, GM PSI, Yanmar, ISUZU)
Speed control offset adjustment electronic engines
Automatic shutdowns and warnings
Trim feature for sensors
RPM via magnetic pickup or J1939
Maintenance counter
Exerciser Clock
100 Event Log
Conformally coated for protection against moisture and contaminants
Gasket for water ingress protection to IP65
Autostart on Low Battery and other sensors
Free PC Configurator Software
Fast and rugged installation clips
Passcode protected
Manual and remote start
Momentary start and momentary stop inputs are suitable for float switch control in pumping applications and multiple start-stop stations
Pre-heat and many configurable timers
Accepts common senders (VDO, Datcon, Murphy, and more)
Custom senders configurable with PC software
5-Year Warranty

Front Panel or PC ConfigurableThe TOUGH series can be programmed manually via front panel buttons or our easy-to-use PC configurator software that customizes screen messages, sender selections, control settings, and much more. The PC configurator uses a standard USB cable with no special programmer required.

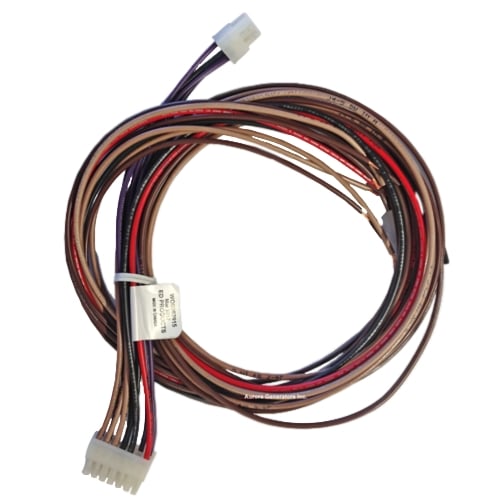

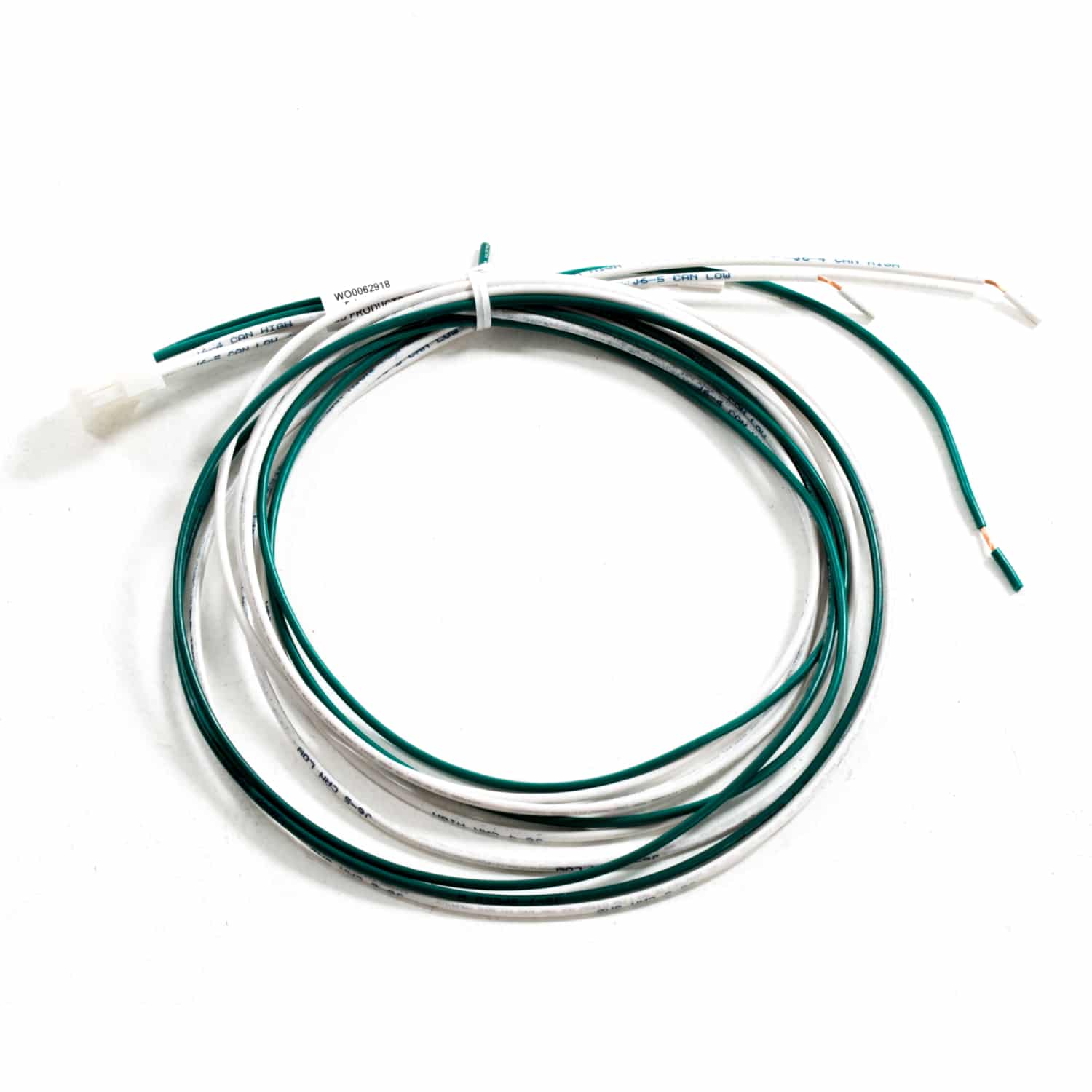

View the connection diagram thumbnail above to identify the connectors and harnesses before ordering. The relay pack is optional if you already have operable interposing relays for the engine crank, fuel solenoid and glow plug (if applicable). If you are upgrading from a different model controller you WILL need the wiring harnesses to get the mating plugs to fit this controller.

Options:

RelayPak

Snap-on RelayPak eliminates the need to mount and wire external slave relays for the fuel crank and up to two other loads

Monitoring

RemoteIQ remote monitoring and control is available with a cellular modem

Heated LCD

A heated LCD version is available for operation with displays down to -40 C

Mimic Panel

TR100 is available for TG350 and TG410 controllers and mimics what is displayed on the controller.
