Description
The Pyxis 2S is an industrial‑grade wireless remote control system engineered to increase efficiency in demanding environments. It is built for heavy use across agriculture, industrial automation, transport, and warehousing.
It supports up to ten functions—or twelve with configuration settings—allowing the transmitter to be tailored to your operational needs. An optional safety package is available for enhanced ISO 13849‑1 PL compliance. Users can choose from a wide range of customizable button layouts and icon sets, and the system’s duplex communication provides real‑time feedback for secure, reliable control.
📡 Operating Range
The Pyxis series, including the Pyxis_2S and Pyxis_6F, offers a typical range of up to 350 meters, though actual performance varies by model and environment.

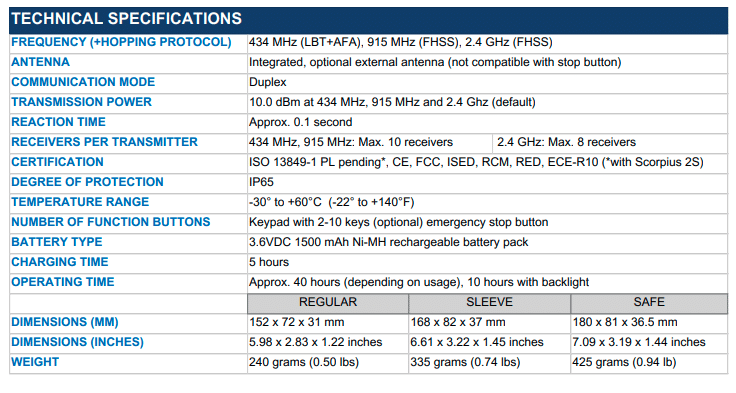

🔧 Key Specifications
Button Layout
-
- Two to ten buttons with an optional e‑stop
- Customizable icons
Protection
-
- IP65_rating
Housing
-
- Industrial‑grade ABS enclosure
Frequency Options
-
- Global spectrum support: 434 MHz, 915 MHz, 2.4 GHz
- Frequency hopping for signal reliability
Communication
-
- Duplex mode with real‑time feedback
Battery
-
- 3.6 VDC, 1500 mAh Ni‑MH rechargeable pack
- Approx. 5‑hour charge time
- 40 hours typical runtime
- 10 hours with keypad + LCD backlighting active
Safety & Compliance
-
- ISO 13849‑1 (PL certification pending)
- CE, FCC, ISED, RCM, RED, ECE‑R10
🔄 One‑to‑Many / Many‑to‑One Capability
The system can link:
-
- One transmitter to multiple receivers
- Multiple transmitters to one receiver
Receiver limits:
-
- 434 MHz / 915 MHz: up to 10 receivers
- 2.4 GHz: up to 8 receivers
📶 Antenna Options
-
- Integrated antenna
- Optional external antenna (not compatible with the e‑stop configuration)
🔌 Compatible Receivers
Known Part Replacement:
|
|
