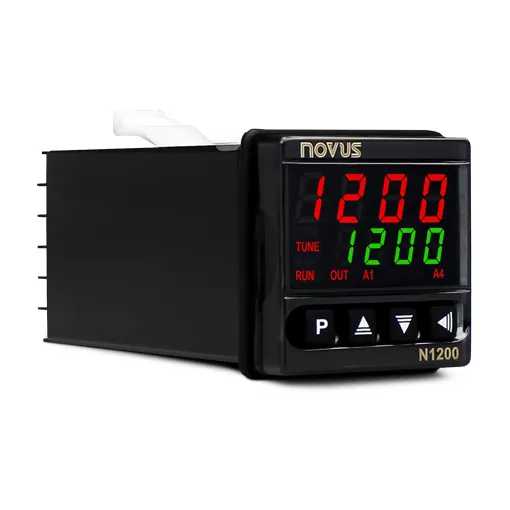

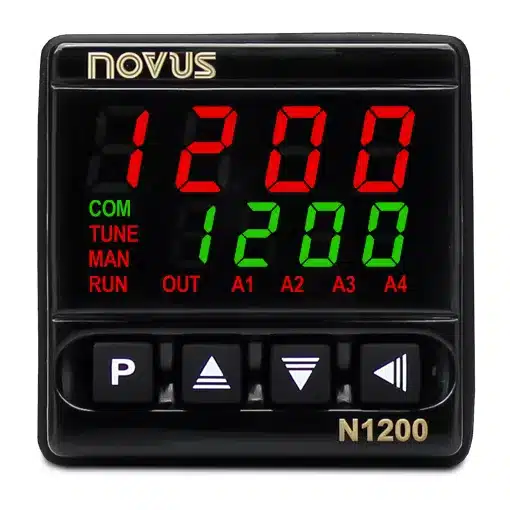

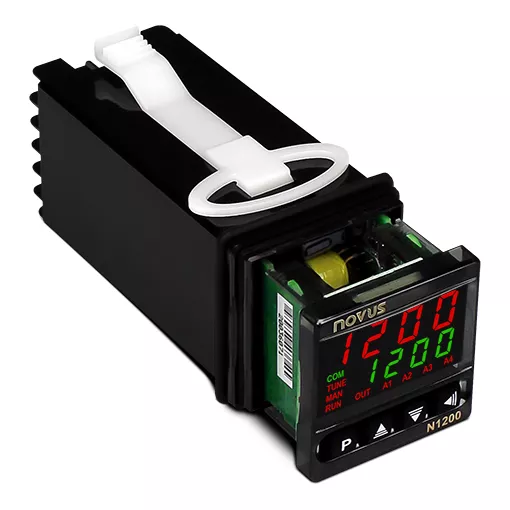

The N1200 process controller was designed for high-performance control in the most demanding applications. Its advanced and consolidated Auto-Adaptive PID algorithm ensures fast and highly accurate response in very dynamic processes with complex profiles.
Designed for high-performance demanding applications, N1200 is the process controller with the highest sampling rate among competitors (55 samples per second). Thanks to its self-adaptive PID algorithm, N1200 responds quickly and accurately even in the most complex temperature profiles.

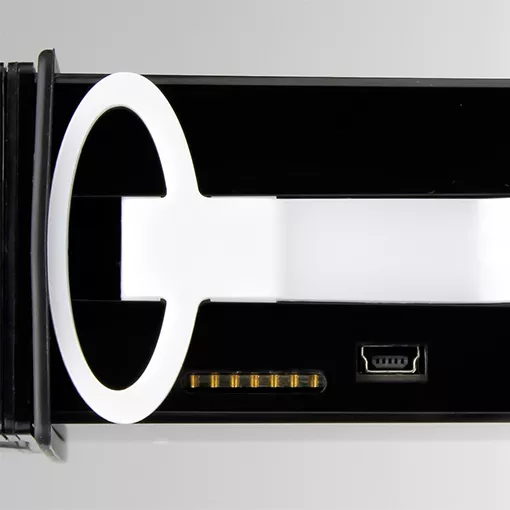

Fully configurable via keyboard or USB using the free-of-charge NOVUS configuration software, N1200 presents itself as an easy-to-use option. In addition, the device allows ramp and soak temperature profiles customization, programming up to 20 user-configured recipes or up to 180 segments.
The N1200 controller accepts most industrial sensors and signals. Its housing – made of flame-retardant material – and its electronic robustness comply with the main world-class certifications, making N1200 a safe, efficient, and outstanding process controller for different types of applications.

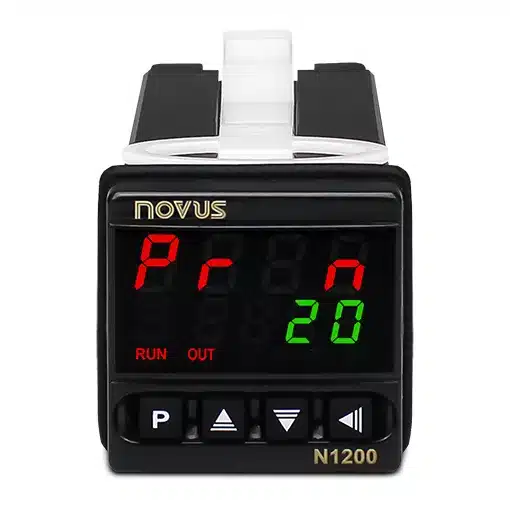

! In addition to the standard parameter settings, the N1200 also performs customized ramp and soak temperature profiles by programming up to 20 user-configured recipes or up to 180 segments.
Specifications
– Input Type: TC J, K, T, N, R, S, B, E, Pt100 0-20 mA, 4-20 mA, 0-50 mV, 0-5 Vdc, 0-10 Vdc – Accuracy: Thermocouples J, K, T: 0.25 % of span ±1 °C; Thermocouples N, R, S, B: 0.25 % of span ± 3 °C; Pt100, 0-20 mA, 4-20 mA, 0-5 Vdc, 0-10 Vdc: 0.2 % of span – Input Resolution: 32767 levels (15 bits) – Sampling Rate: 55 samples per second – Analog Output: 0-20 mA or 4-20 mA – Output Resolution: 31000 levels – Control Type: PID, PI, PD, P; On/Off – Control Action: Heat or Cool – Control Output: Type SSR Pulse; 4-20 mA control; Relay – Open Sensor Detection: Loop Break / Heater breaker detection – Alarm Types: Minimum, Maximum, Differential, Differential, Low, Differential High, Open Sensor, Ramp, and Soak Event – Optional: Relay, Two Digital Inputs or Outputs, RS-485, Heater break detection – Communication: RS-485 Modbus optional – Ramp and Soak programs: 20 programs with 9 segments each Safety: Password-protected configuration – Configuration Interface: USB type Mini B (powered) – Power Supply: 100-240 Vac/dc; 12-24 Vdc – Maximum Consumption: 9 VA – Front Pannel: IP65 ; Polycarbonate (PC) UL94 V-2 – 48 x 48 x 110 mm (DIN 1/16); ABS+PC UL94 V-0 – Enclosure: IP20 – Operating Conditions: 5 to 50 °C (41 to 122 °F) and 0 to 80 % RH – Approvals: CE, RoHS, Reach, UL, and cUL
Wide range of industrial process controllers, such as temperature control, humidity, pressure, flow, and other electrically measurable variables, through ON-OFF or PID algorithms with auto tuning.
QuickTune is a free software tool for parameter configuration of NOVUS controllers and indicators. With its clean interface, any lay or advanced user can friendly access and modify all device functions for proper configuration. Designed for easy and quick commissioning, it provides diagnosis and monitoring resources to field technicians. More than a software, QuickTune is a tool. Furthermore, QuickTune offers the main features to meet most users’ and profile needs in the industry.
FieldChart is a software used for monitoring and registering data acquired from NOVUS products. It generates real-time trends and data lists that can be exported in usable formats like a spreadsheet. There are two versions available: FieldChart-Lite and FieldChart-64C.
The FieldChart-Lite can register 8 simultaneous channels, and it is available for free.
Video
N1200 – Configurando rampas e patamares | Configuring ramp and soak | English
Installing an SSR on the N1200 | English
NOVUS Controllers – a general overview | English
PID Process Controller N1200 | English
Models
81202HC120
N1200-HC USB Heating/Cooling controller, 2 relays, 48×48 mm
8120200634
N1200-DIO USB RS485 24V Process controller 2 relays 48×48 mm
8120200630
N1200-DIO USB RS485 Process controller, 2 relays, 48×48 mm
81202HC224
N1200-HC USB RS485 24V Heat/Cool controller 3 relays 48×48 mm
81202HC634
N1200-HC USB DIO RS485 24V Heat/Cool. Contr 2 relays 48×48 mm
81202HC220
N1200-HC USB RS485 Heat/Cool controller 3 relays 48×48 mm
8120200524
N1200-HBD RS485 USB 24V Process Controller heater break detec. 48x48mm
8120200520
N1200-HBD RS485 USB Process Control. heater break detec. 48x48mm
8120200224
N1200 USB RS485 24V Process controller, 3 relays, 48×48 mm
8120200220
N1200 USB RS485 Process controller, 3 relays, 48×48 mm
8120200120
N1200 USB Process controller, 2 relays, 48×48 mm
8120200124
N1200 USB 24V Process controller, 2 relays, 48×48 mm
81202HC630
N1200-HC USB DIO RS485 Heating/Cooling. Contr 2 relays 48x48mm (1/16DIN)
Accessories
8830005000
Pt100, AISI 316, 5x30mm, 1.5 m PVC cable 0-100C
8830015615
THERMOCOUPLE J PROBE 6X7MM W / SPRING BAIONET SM CONNECTION CABLE FB+FB+SS BRAIDING INSULATED 1,5M 300C
