Description

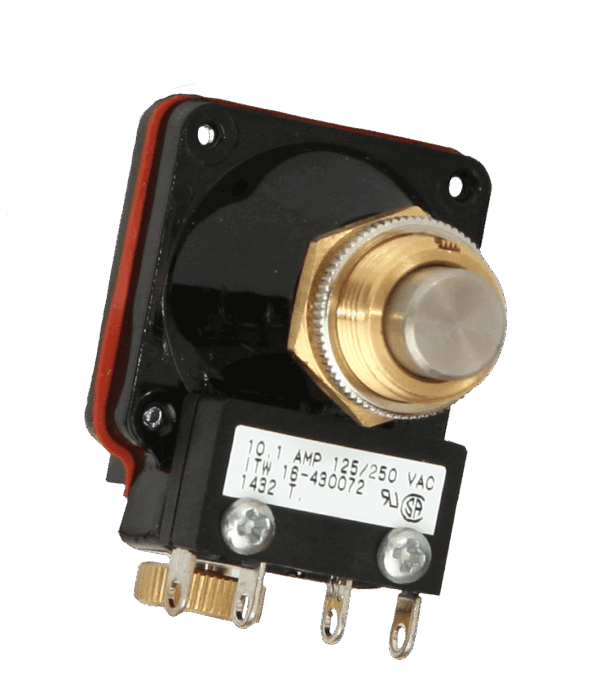

The Model 90 Pneumatic Timer opens or closes a circuit after an adjustable time delay.
The Lexan® plastic molded body has high impact strength and is corrosion-resistant. No electricity is required to operate the timer.
Its compact size allows it to fit in a 1 1/2-inch cube and requires no electricity to operate.
The time range is adjustable between 2 seconds and 60 seconds, with a standard deviation of ±15%.
The Model 90 is ideally suited for security applications.

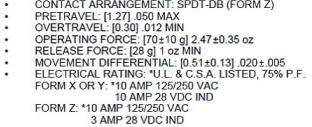

SPECIFICATIONS
- Function Type: Single Function Timer
- Timing Mode: Interval/One Shot
- Time Display: Seconds
- Certifications: US-UL (100-250V AC Only)
Standard Model: 90-01041
Pushbutton timer with solder-type terminals on the switch
