Fornax 2S Tyro Remote Control System

Description

The Fornax 2S is an intuitive and tough industrial wireless remote control system.

It is designed to withstand demanding industrial and agricultural applications like forestry, fishing, or industrial cleaning.

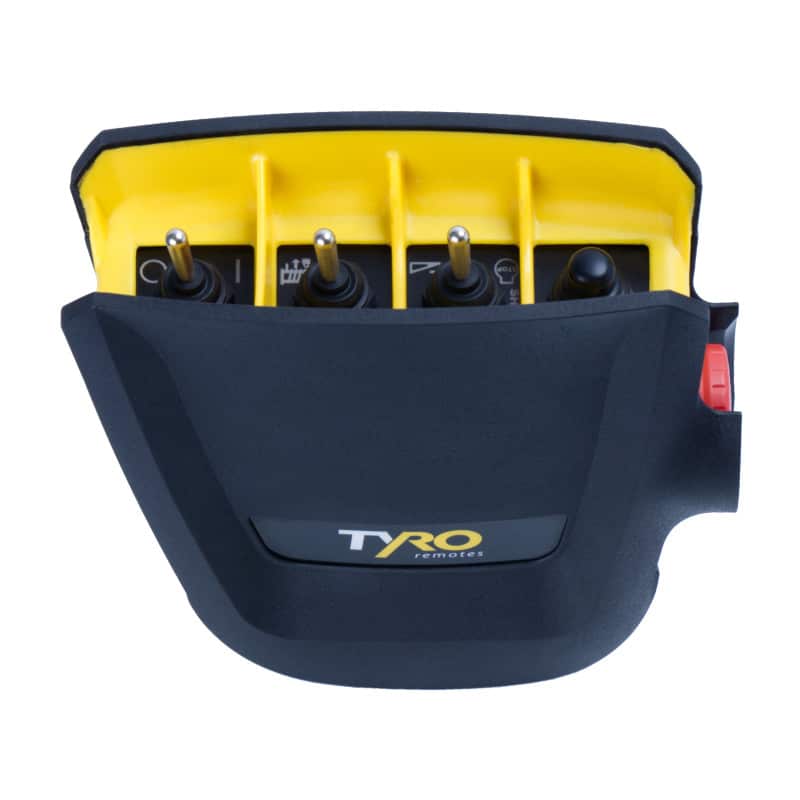

The Fornax 2S transmitter is designed for flexibility and can be worn on the belly, hip, or chest.

Buttons and switches can be customized with toggle, push, or potentiometer options.

The illuminated keypad, integrated flashlight, and rechargeable batteries ensure you can work uninterrupted.

• Suitable for the toughest jobs in forestry and industry
• Including belly and chest strap
• PLc safety certification NEN-EN-ISO 13849
• Under forestry directive DIN-EN 17067
• Newest radio technology
• Extremely fast <0.1s
• Configurable buttons
• Electronic Stability Assurance (eSTAB), on X, Y, and Z axis receivers (optional)
• RPM Memory (manual throttle control)
• Newest radio technology

Button Layout

Keypad with three buttons or switches and an On/Off switch

Protection

IP67-rated – Read about IP ratings

Housing Material

TPE rubber housing

Frequency

Global coverage with worldwide spectrums: 434 MHz and 915 MHz

Communication Mode

Duplex

Battery Type

• • Two 18650 lithium-ion batteries
  • Four CR123 rechargeable batteries
  • Three and a half hours of charging time

Battery Life

50 hours with typical use

Safety & Compliance

• • ISO 13849-1 PL-c
  • CE
  • RED
  • EMC
  • LVD
  • DIN-EN 17067
  • ECE-R10

One-to-Many / Many-to-One System

Ability to control one receiver with multiple transmitters or multiple receivers with a single remote control.

• 434 MHz and 915 MHz: maximum of 10 receivers

Antenna

Integrated antenna

Remote control for forestry winches

With remote control from the new Fornax 2S series, you have a very safe and complete remote control system that has been specially developed for use in all conditions. The Fornax 2S is very suitable for heavy industrial or agricultural applications such as forestry. In the Netherlands, the Fornax remote controls are also widely used in, for example, the industrial cleaning sector. In this new generation, the wishes of our end user have been translated into new features. The transmitter is therefore very ergonomically and intuitively designed, equipped with keypad lighting and handy flashlight.

Safety

This Fornax has also been subjected to a series of tests which it passed with flying colors. The Fornax 2S guarantees a good, stable, and safe connection, even in a forest. This Performance Level C remote control is equipped with safety sets, out-of-range protection, and a STOP button that guarantees safe use under all conditions. To anticipate all situations, the Fornax 2S has a response time of <0.1 seconds.

eSTAB

To prevent the tractor from falling over and to ensure optimum safety, eSTAB (Electronic Stability Protection) can be used. This feature is available as an option for all models.

Do not confuse eSTAB with an ordinary tilt sensor, because eSTAB not only protects against tipping of the tractor in both axes but also against slipping and thus also secures the Z-axis – a first!

Equally unique is that eSTAB is integrated into the receiver and therefore no additional module needs to be installed.

The (one-time) calibration of the zero position takes place within a few seconds and ensures unparalleled accuracy.
