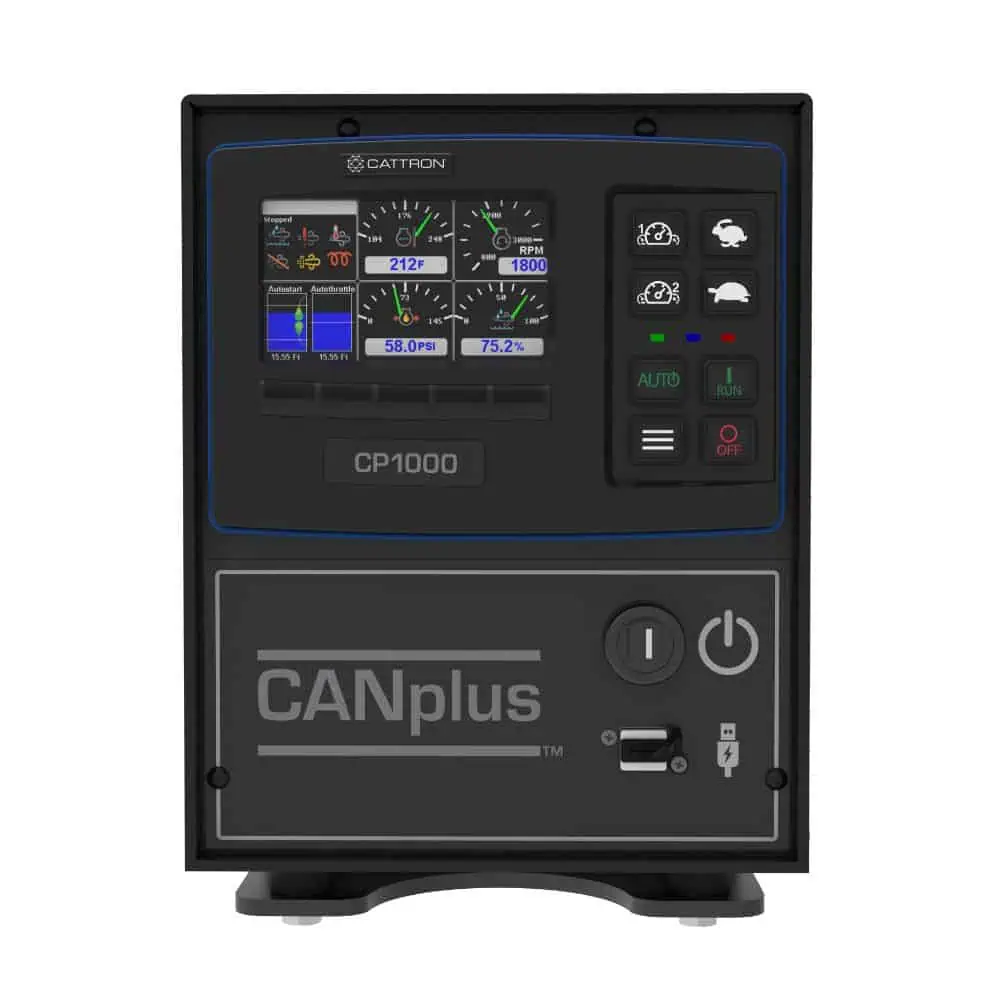

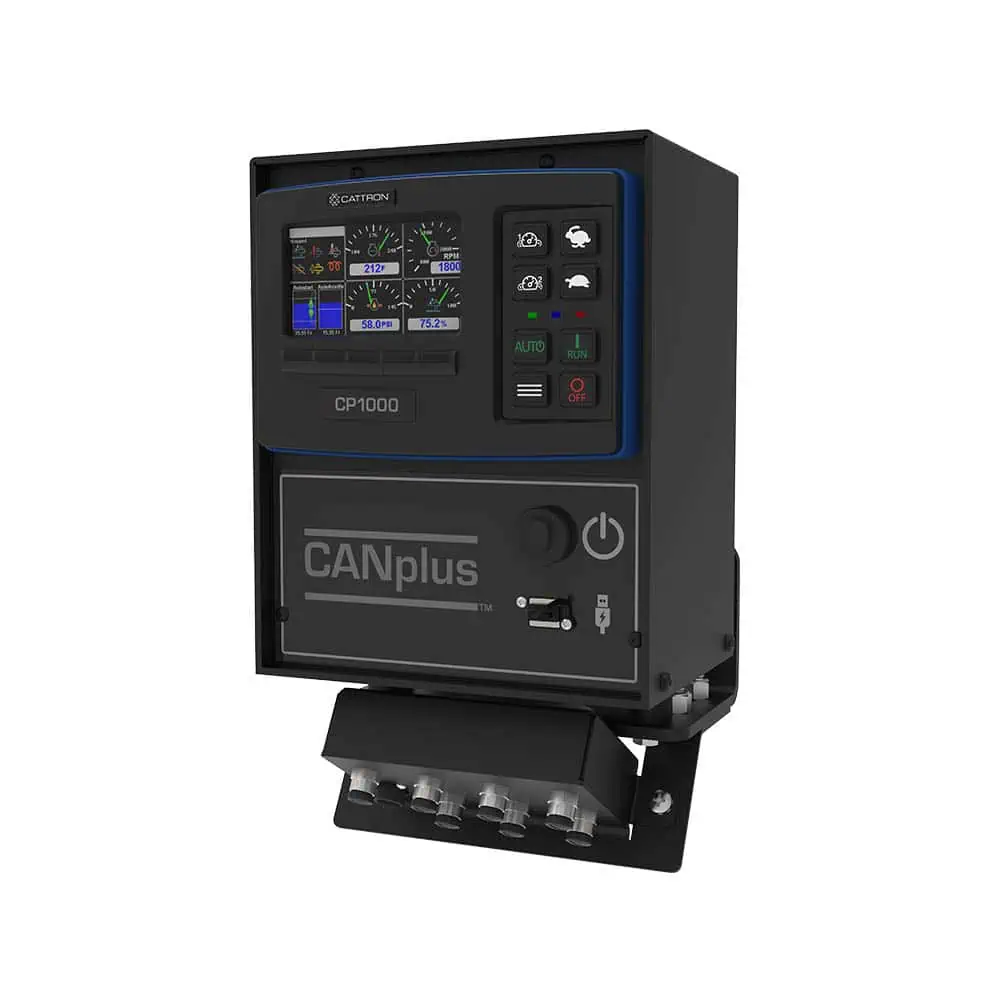

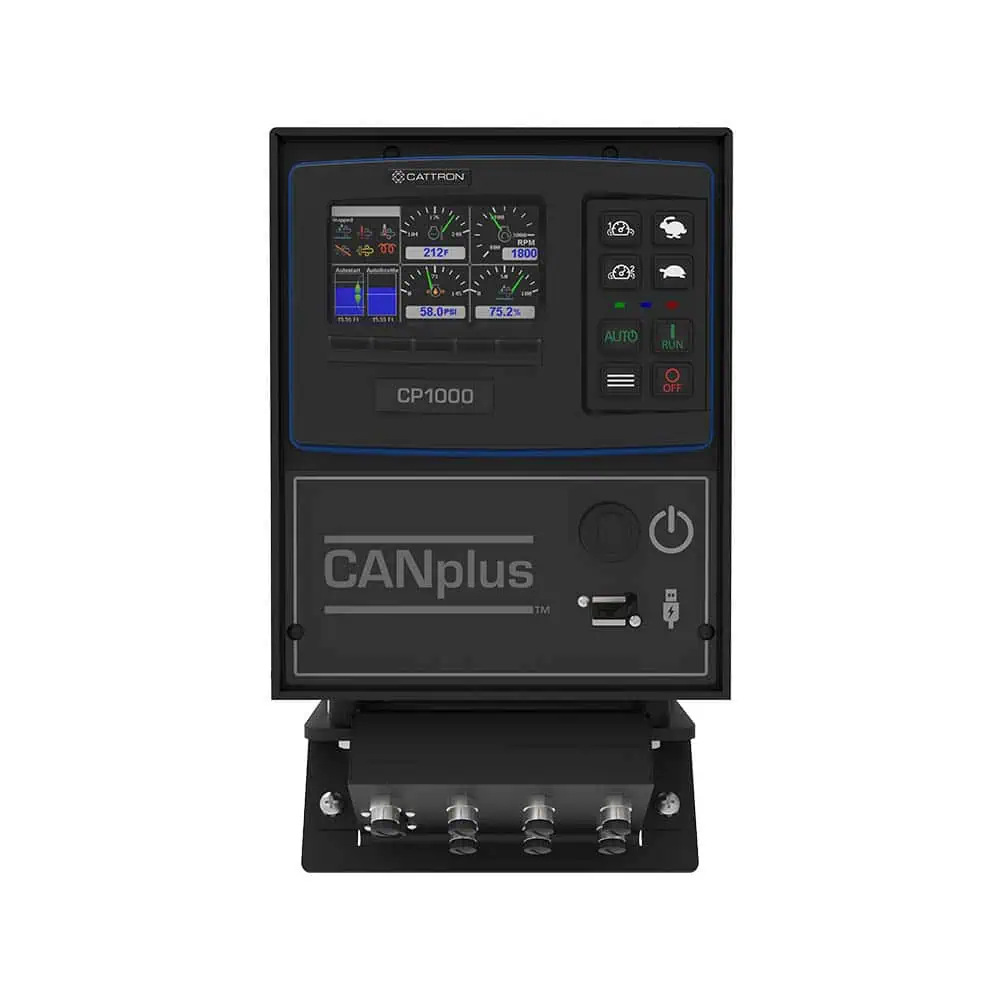

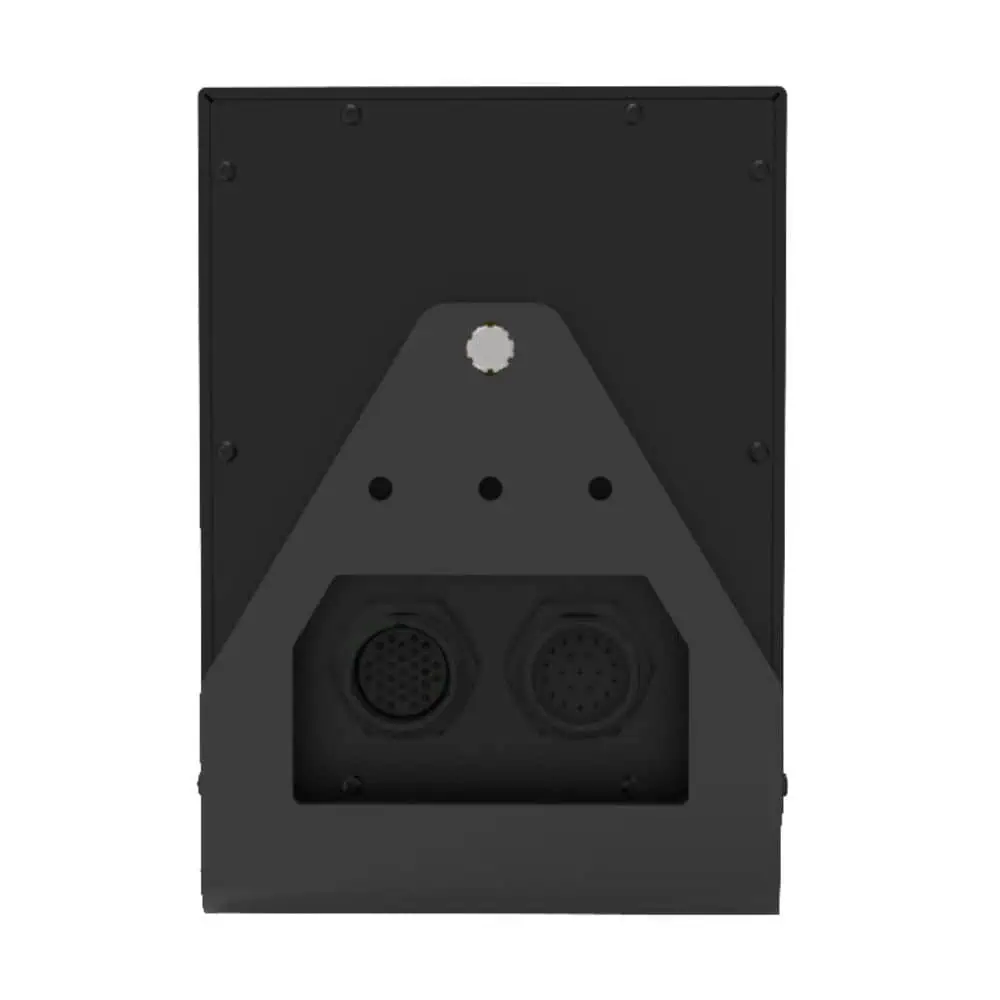

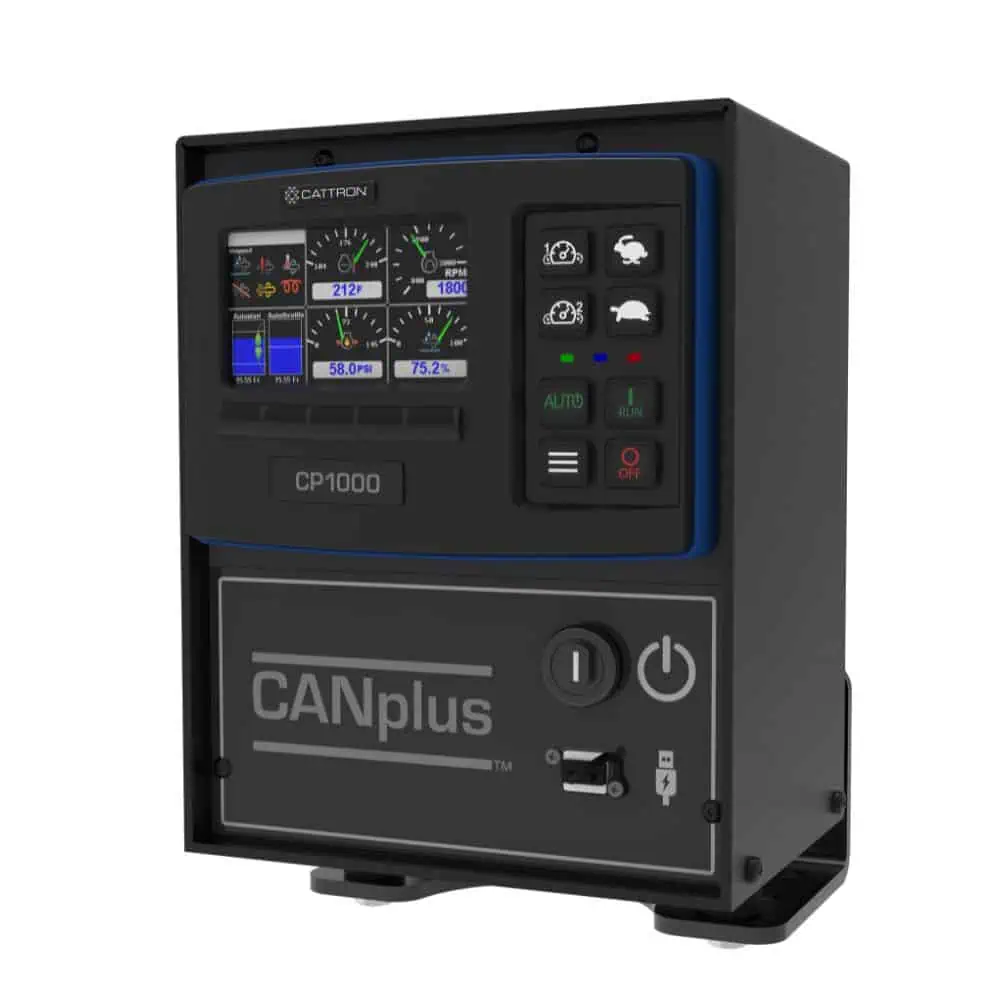

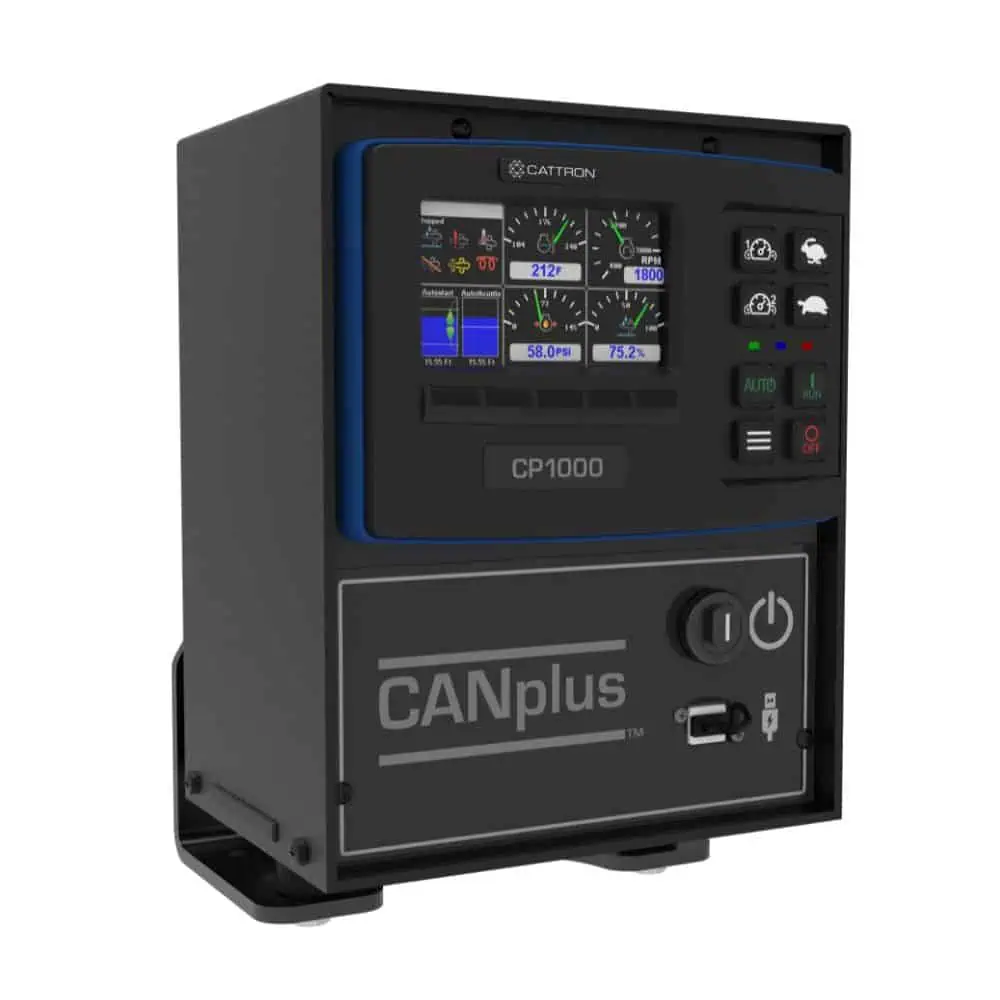

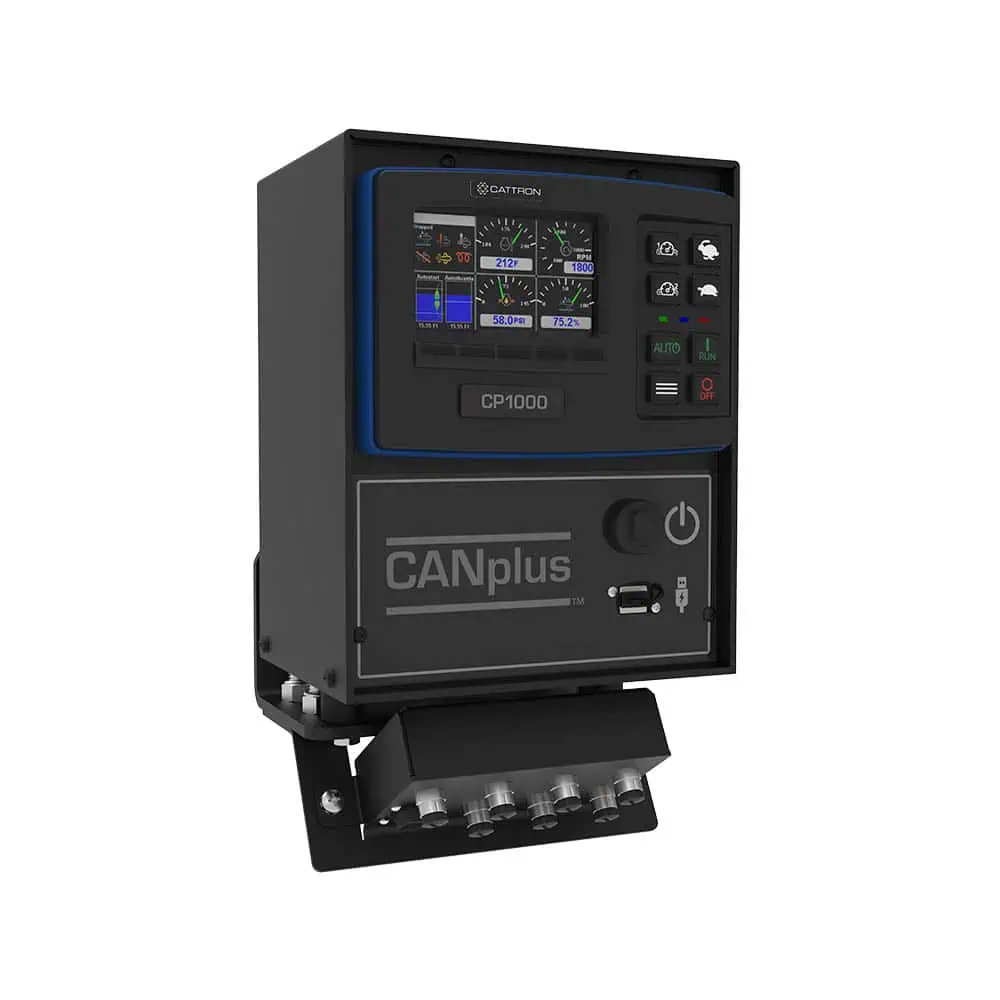

Engine Control Panel CANplus CP1000

Description

The CANplus™ CP1000 is a comprehensive engine control panel with 21 inputs and ten outputs. It supports manual or autostart operations on electronically or mechanically governed engines and electric motor-driven equipment. It is typically used to measure floats, suction and vacuum pressure, discharge pressure, water level, and water flow, and supports multi-pump applications.

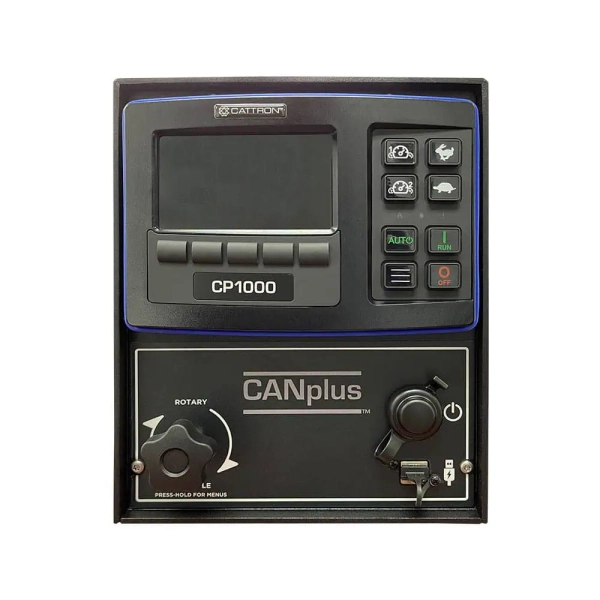

Each control panel integrates telemetry. The LTE option allows remote tracking, monitoring, and control, and enables local remote monitoring and control via the Device Manager app.

Powered by RemoteIQ™, the CP1000 offers machine learning to detect patterns, analyze data, and troubleshoot issues, including cavitation detection. By learning what normal operations look like for your specific application, RemoteIQ can alert operators when the panel is no longer within the normal range, improving operations and efficiency.

It is also supported with QR-Assist, which generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolutions.

Features

Display

Intuitive, user-friendly menus accessible via a 43c high-resolution 4.3” WQVGA color display

CANplus Control

Patent-pending advanced throttling and control capabilities

Outputs

Built-in alarm, two 10A power outputs (starter & ECU), two isolated power outputs (20A and 10A), four 1A outputs (one for pre-heat), two 1A transducer power outputs, yellow/red fault/warning, blue LED for emissions indication, green Autostart LED, external E-Stop (Normally closed, Grounded closed)

Inputs

Five display buttons, eight switch inputs, six 4-20mA transducer inputs, two fault switch inputs (oil & temp), three resistive sender inputs, two pulse meters (one can be used for Tach Alternator)

Event Manager

Can fully control engines based on configurable criteria – eight digital inputs, six 4-20 mA analog transducer inputs, a battery-backed real-time clock or a combination of criteria

QR-Assist

The display generates QR codes that any smartphone or tablet can quickly scan to troubleshoot and expedite resolutions.

Configuration

Simple configuration using menus or through a simple, straightforward Windows-based configuration program

Interface

• CANplus J1939
• Modbus RS-485

Autothrottle Maintain Point

Configurable 4-20mA transducer target values to dynamically throttle the engine to maintain a level

Autostart

Configurable start and stop events: autostart switch inputs, 4-20 mA transducer (level, pressure, flow, etc.), 24×7 schedule run, and countdown-to-off timer

Machine Learning

Detect patterns, analyze data, and troubleshoot issues, including cavitation detection

Autothrottle Profile

Configurable seven-stage autothrottle profile

RemoteIQ™ QR-Assist™

Fault Diagnostics for CANplus™ Panels and the DynaGen™ 200 Controller

Instant Support & Diagnostics at Your Fingertips

QR-Assist™ is a patented, software-based diagnostic tool that supports CANplus engine control panels and the DynaGen 200 controller. This innovative tool provides instant access to a comprehensive database of technical system faults and customized, proven solutions, empowering users to resolve issues quickly and effectively.

Effortless Use and Powerful Benefits

A key feature of QR-Assist is its seamless integration with CANplus panels and the DynaGen 200 controller. Accessible via smartphones and tablets with a simple scan, QR-Assist eliminates the need for bulky equipment, complex setups, and lengthy troubleshooting procedures – all thanks to the high-resolution color displays on our advanced engine control solutions.

The display generates a unique QR code when a fault is detected within the engine. By simply scanning the code, users can receive valuable engine diagnostic data, including detailed descriptions and causes of the problem, step-by-step troubleshooting guides, and relevant technical solutions directly from linked OEM websites.

QR-Assist streamlines the process, enabling quick identification of faults and initiating appropriate troubleshooting measures, minimizing downtime, and making maintenance and repairs more manageable.

Say goodbye to downtime and hello to a more efficient and reliable diagnostic experience. Experience the future of troubleshooting with QR-Assist.

Watch QR-Assist in Action  |    Download QR-Assist Flyer
