Pneumatic Liquid Level Controller Features
The unique patented design is user-friendly, environmentally efficient, and competitively priced.
|
Non-Bleed Pilot Front Mount Only |
Displacers Optional Sight-Glass Model Testing |
Additional Info

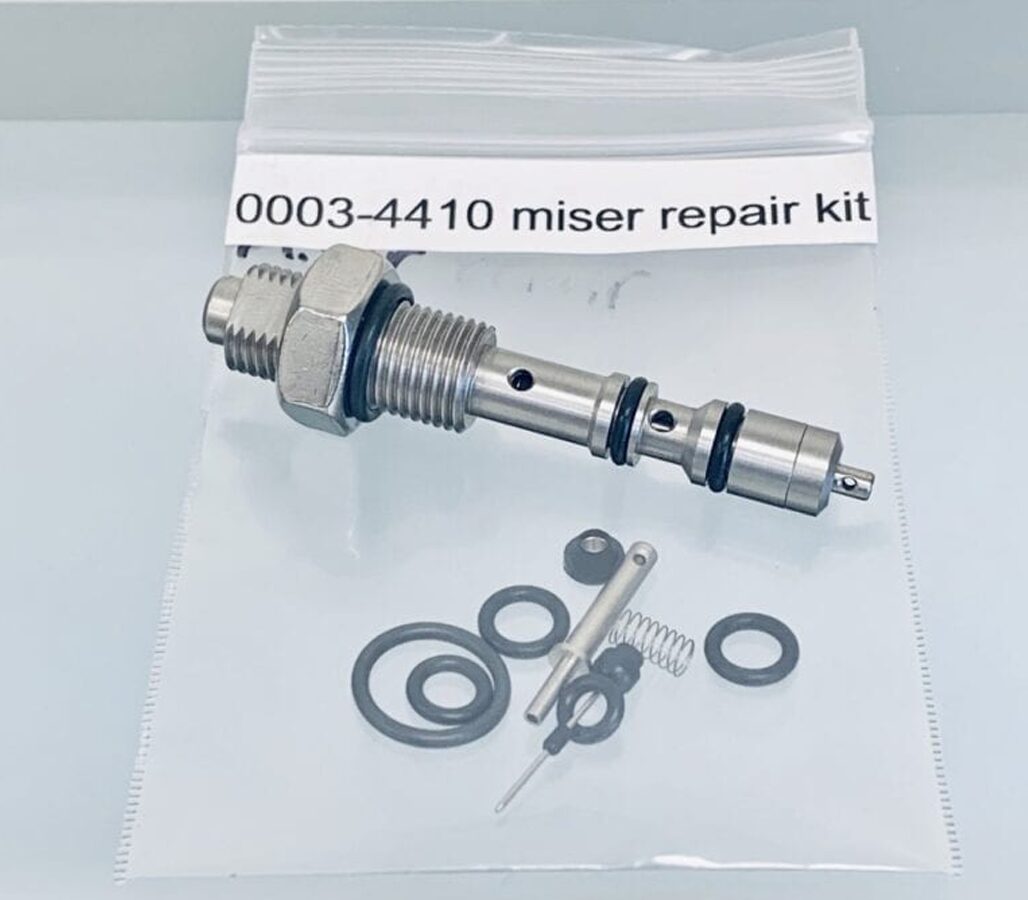

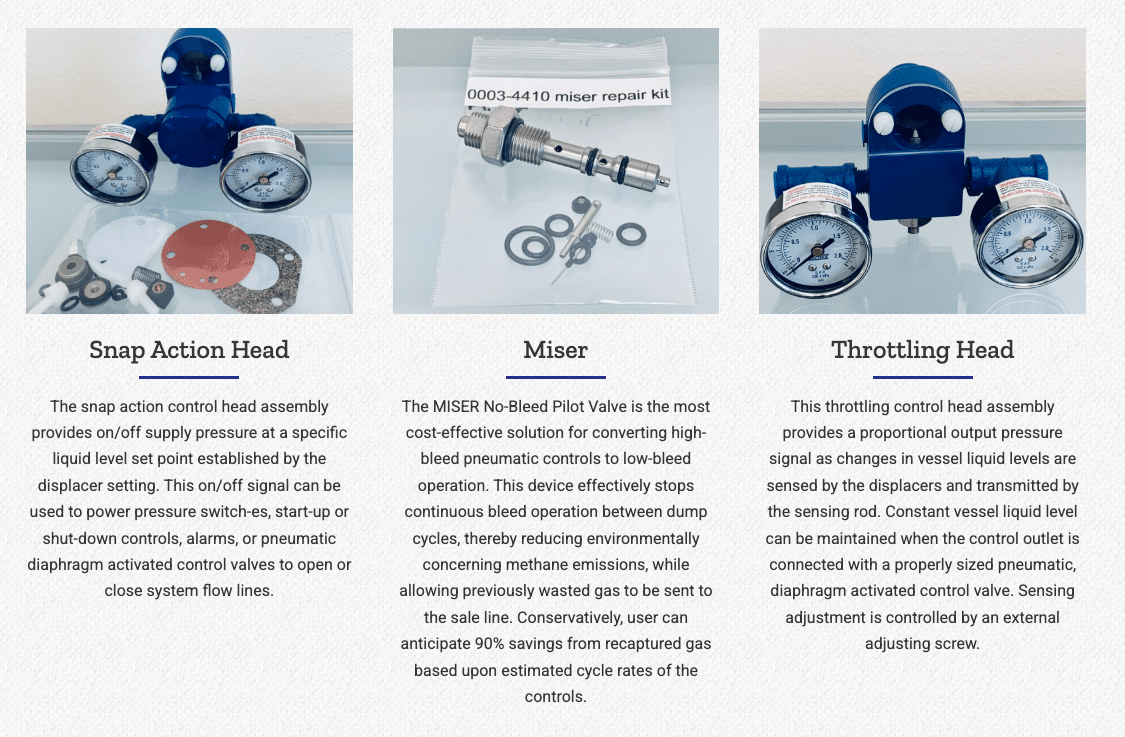

Repair kits are now also available!
| Specifications | |
| Operation Instructions | |
| CAD Renderings | |
| 2202-JR Brochure |
|

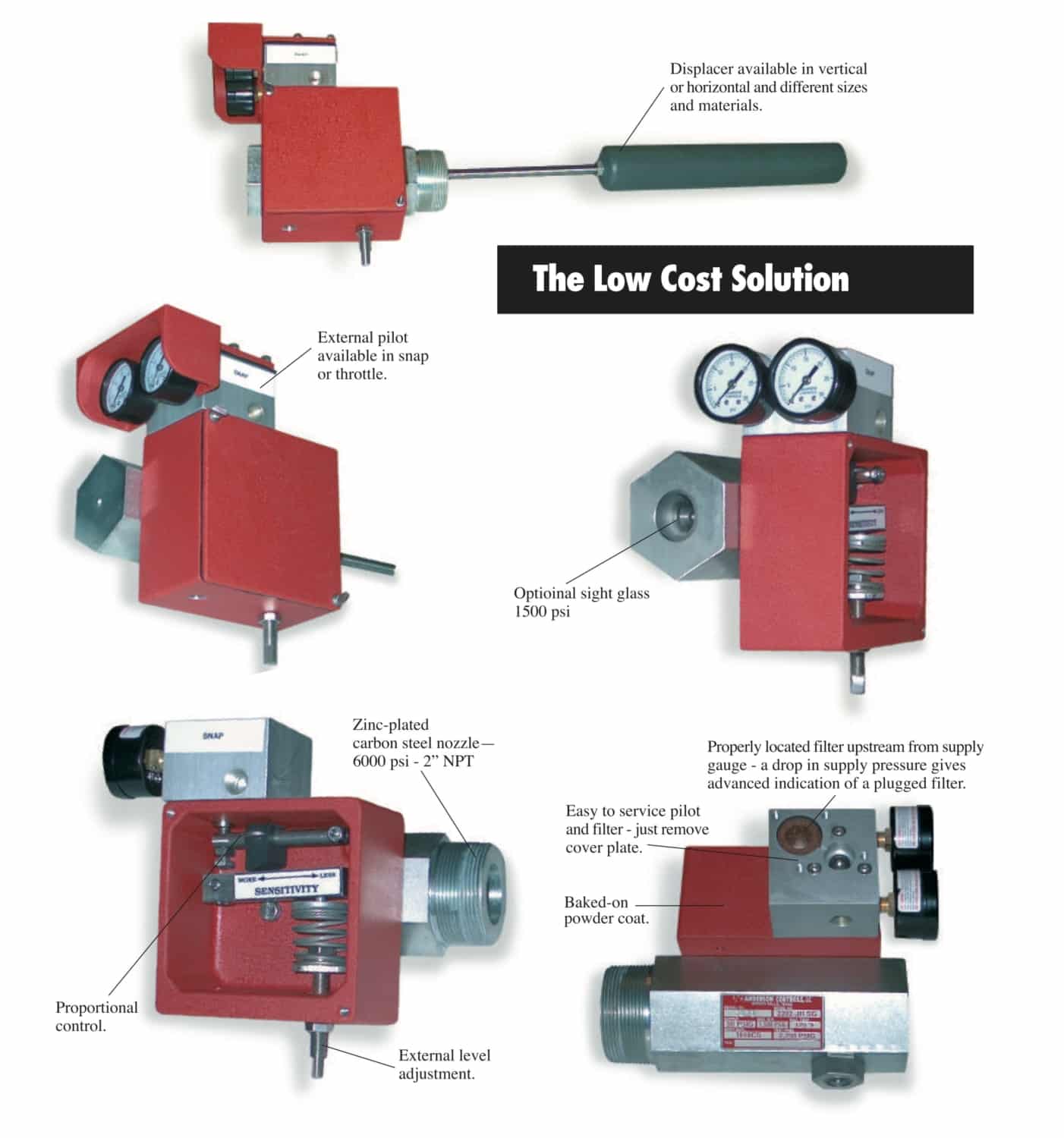

Model 4-LLC 4″ Pneumatic 1,500 PSIG Liquid Level Control Model 4-LLC uses a sensing rod with an attached displacer on the end. With the rise of the fluid, you have the static lift force that allows your actuator pad to move closer to the nozzle, diverting your supply pressure to a diaphragm-operated motor valve. As the fluid drains, your level drops, and the pad moves away from the nozzle, resulting in the relief of the supply pressure. The diaphragm-operated motor valve then closes. You are throttling the valve to maintain a set fluid level in the unit. Using this method of control, you can sense and regulate levels of gas to fluid interface applications as well as many fluid-to-fluid interfaces. Should you desire a snap action of this unit, you could do this by purchasing the Snap Pilot and making the correct adjustment to our control head. Our Liquid Level Control is easy to adjust in the field, making it a product that is going to deliver your products in the most cost-effective method. Our liquid level control is available in different sizes: 2″ threaded, 4″ hammer union, 5″ hammer union, and flanged. |
|
|
|
Model 2-LLC N ” Threaded 250 PSIG Liquid Level Control Our low-pressure float-operated 2″ liquid level control has found many different applications in the oil industry. Our standard 2″ unit utilizes a stainless steel float and SNAPVALVE to provide a positive pneumatic output to control your liquid levels. It can be used as a level control or as a component of a high-low level alarm system. A major feature of TECTROL’s unit is the field adjustment that will not affect your processing. A simple and effective tool for your fluid control, it is available in our standard 2″ threaded unit, or you may special order a 2″ Flanged Unit or 1″ threaded liquid level control. Special orders on Liquid Level Controls are welcome. MODEL 2-LLC-N BROCHURE |
|
8″ Float Nose Liquid Level Controller 250# CWP with a 5″ or 8” weld neck 8″ Float Nose Liquid Level Controller 250# CWP is available in 5″ or 8″. FEATURES: 3/8″ NPT X 12″ (other sizes available upon request) Grease filling is provided for maintenance purposes |
|
|
|
Simple. Anderson Controls, LC Pneumatic Liquid Level Controllers offer unique, patented designs that are user-friendly, environmentally efficient, and competitively priced. |
|
High-Pressure Control Valves Our High-Pressure Control Valve is designed to control the pressure of your liquids or gases. Typical installations may include oil and gas separators, scrubbers, dehydrators, and various liquid accumulators. DESIGN: We offer you this valve in 7400 PSIG and 4000 PSIG working pressure. You have two types of material to select for your seats and plugs: Tungsten Carbide and Stainless Steel. Both of these materials are standard stock items. |
|
Snap Valves
| Model 6005 SNAPVALVE is one of the finest miniature valves being offered for industrial application. This unit had been field proven to be rugged and reliable in many complicated and demanding applications. With its over-center construction and snap-action operation, which industry expects in a miniature valve, this unit can truly solve many of your control problems. | SNAPVALVE features a 1/16 orifice, with a maximum working pressure of 100 PSI, encased in a standard anodized housing. This miniature valve operates at full speed regardless of the force applied; a light force is preferred (16 ounces). You will find no neutral position of lag time in the SNAPVALVE operation response. The unit seals in an off position and cannot be jarred out of this shut-off position. Being a 3-way, 2-position valve, you may select the position of operation that best fits your working conditions. |
With no sliding seals or rotating parts to wear out or cause leakage, our SNAPVALVE requires minimal maintenance. With a clean or filtered pneumatic supply, these units can be maintained in the field for a lengthy time without replacement.
Your imagination is the only limiting factor on the variety of uses for this product. Contact TECTROL for the name of your nearest SNAPVALVE representative.
SNAPVALVE is your assurance of quality.
