Description
7458, 7459, 7460, 7461 Series Small Square Case Counters
A very popular family of flange-mount cases, featuring 5-figure non-reset totalizers. All models feature a scratch-resistant front crystal, smooth low low-torque operation, and dust-resistant construction.
These counters are compact non-reset counters available with ratchet drive, revolution drive, direct drive, or rotary ratchet drive. All these technologies are in the same miniature form factor and can fit in a 1” cube, exclusive of flanges. Can be clipped in or clamped to eliminate the need for mounting provisions/flanges.
Models are available with input shaft drives that count from a ratcheting motion, or rotary drives with count-per-revolution ratios of 1:1, 10:1, or 1:10.
Applications
Industries
- Mechanical totalizer for electrical power switchgear, vending machines, broadcast tuners, and turnstiles.
- Injection molding shot counter.
- Optimal for users with space constraints that need a reliable mechanical counter; no power source is required.

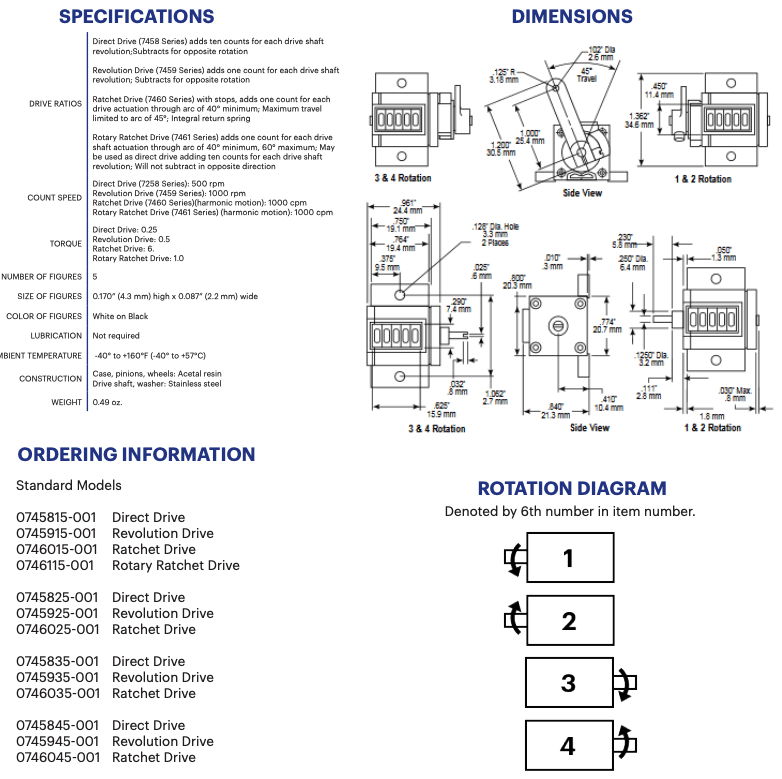

0745815-001 Direct Drive
0745915-001 Revolution Drive
0746015-001 Ratchet Drive
0746115-001 Rotary Ratchet Drive
0745825-001 Direct Drive
0745925-001 Revolution Drive
0746025-001 Ratchet Drive
0745835-001 Direct Drive
0745935-001 Revolution Drive
0746035-001 Ratchet Drive
0745845-001 Direct Drive
0745945-001 Revolution Drive
0746045-001 Ratchet Drive
