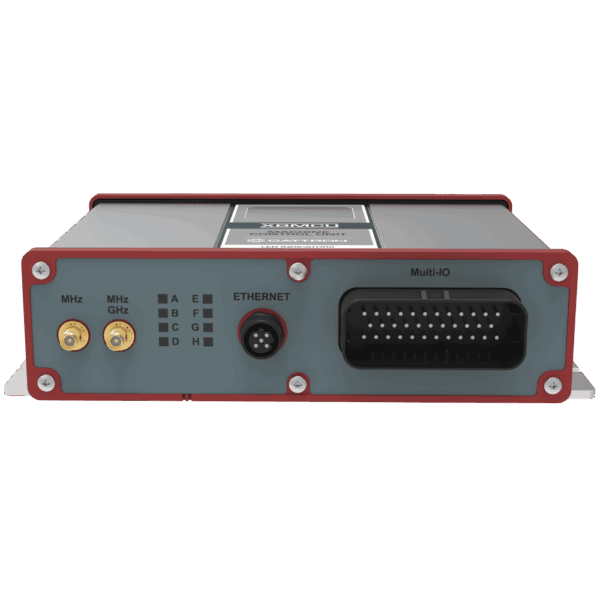

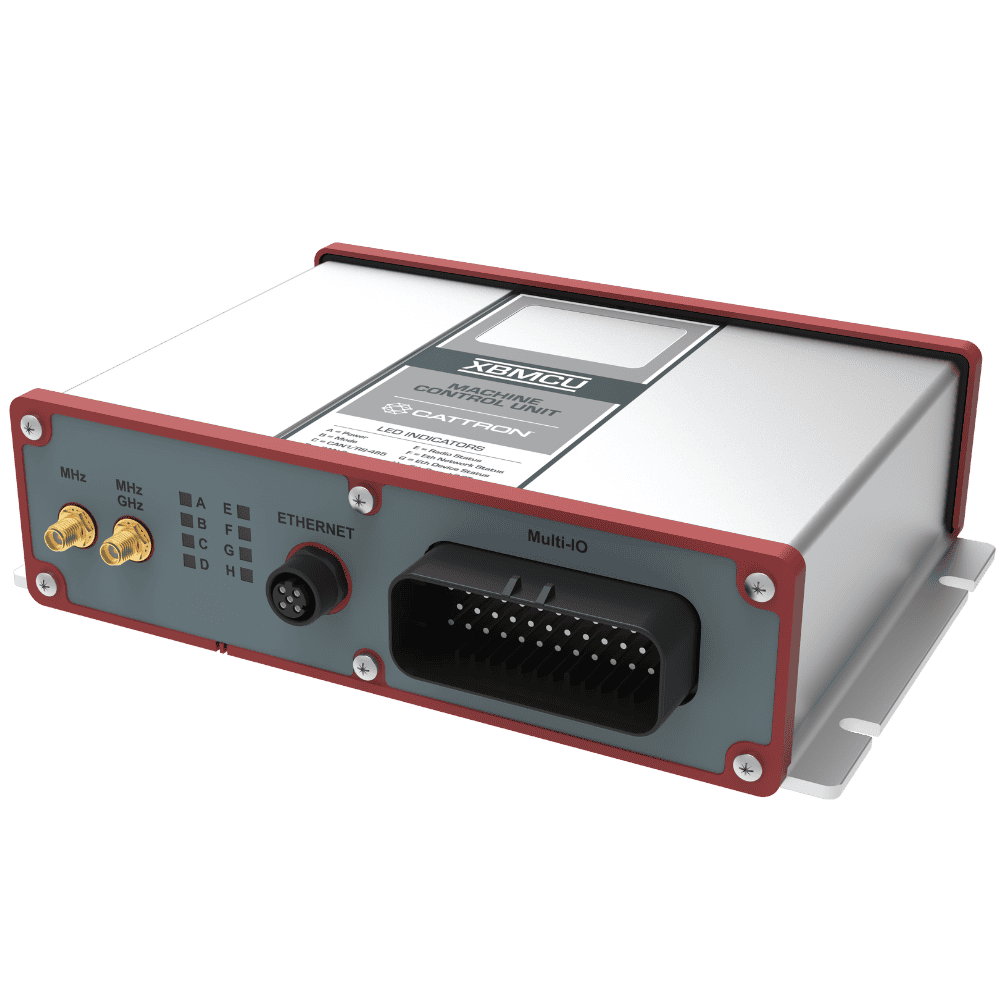

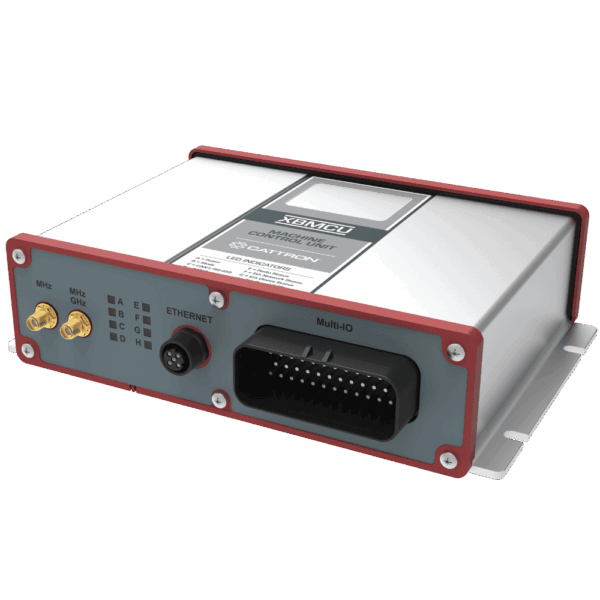

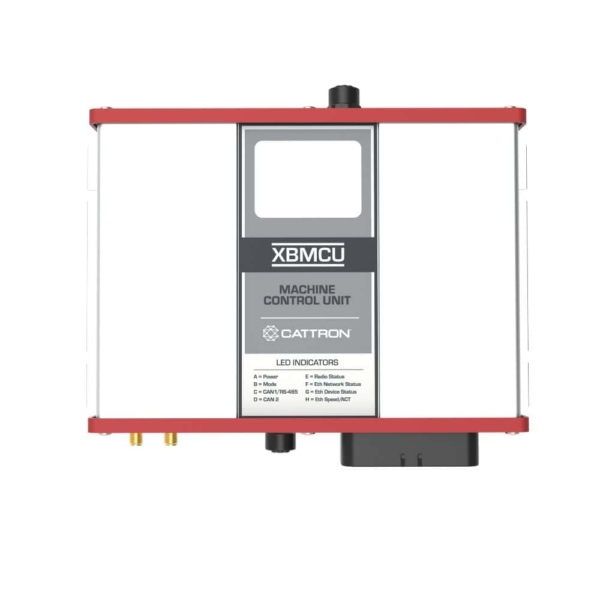

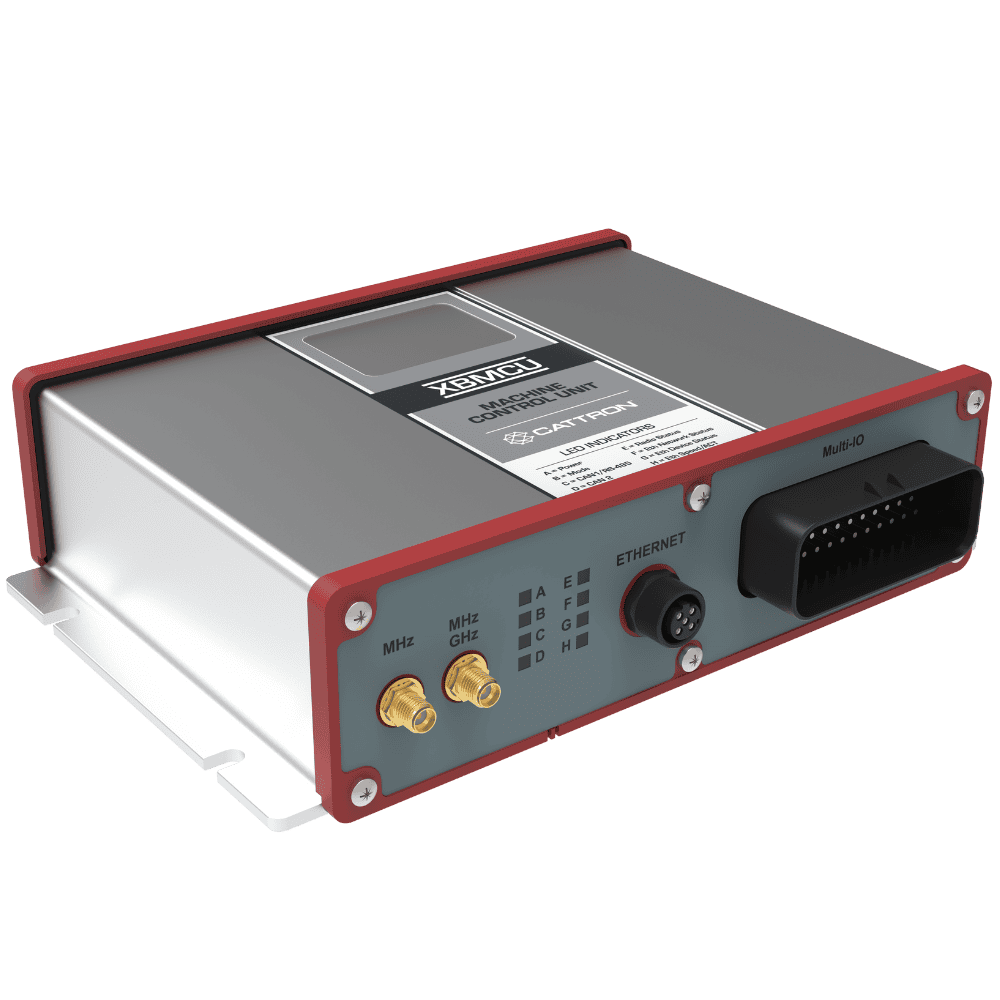

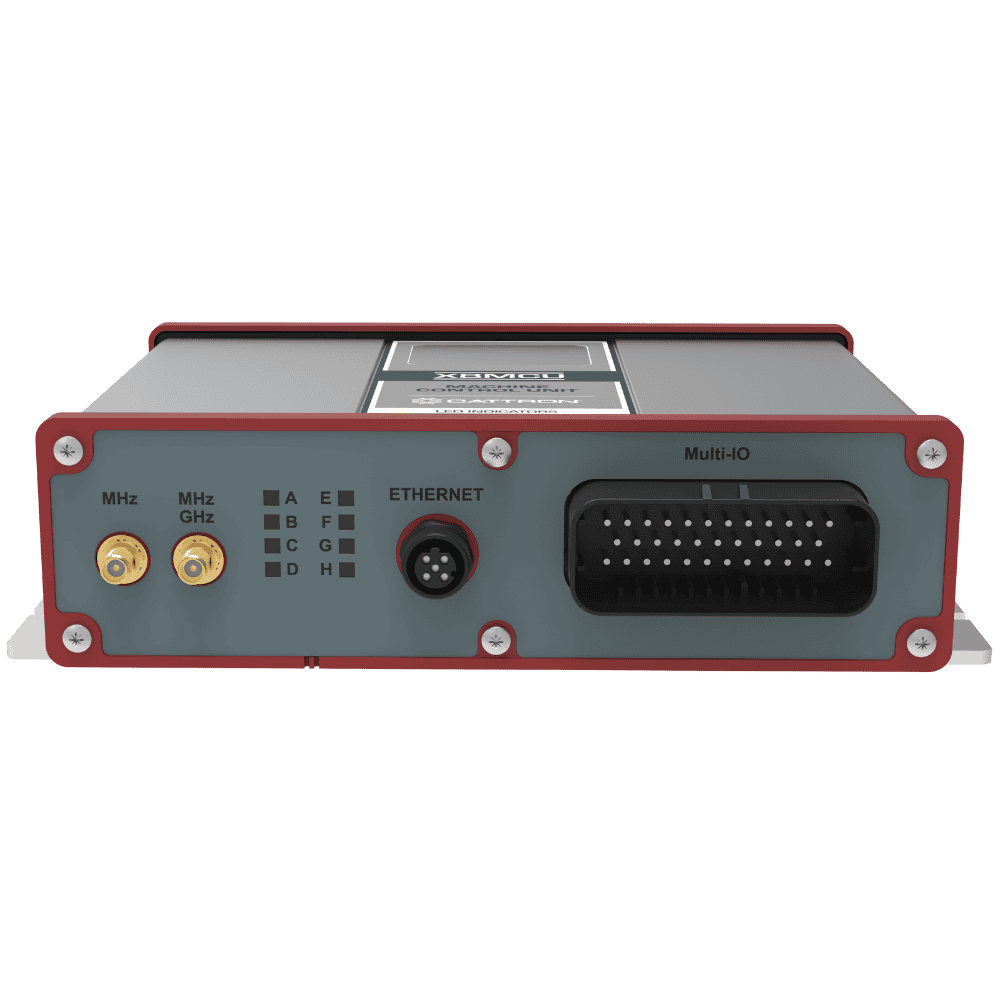

XBMCU Compact Multi-Interface Receiver and MCU

Description

XBMCU is a compact multi-interface receiver and machine control unit (MCU) offering seamless integration into PLC systems through multiple serial protocols, offering unrivaled reliability. Machine-to-machine functionality can be supported in both directions, handling high data volumes. It is designed for industrial automation and robotic applications, mobile machines, overhead cranes, logistics and monitoring systems, and shunting applications.

Plug-and-play integration for the XBMCU gets users up and running in minutes with secure RF communication and simplified machine control. Closed-box programming and configuration can be performed using the CattronLink™ desktop or mobile app and is available with global frequency support.

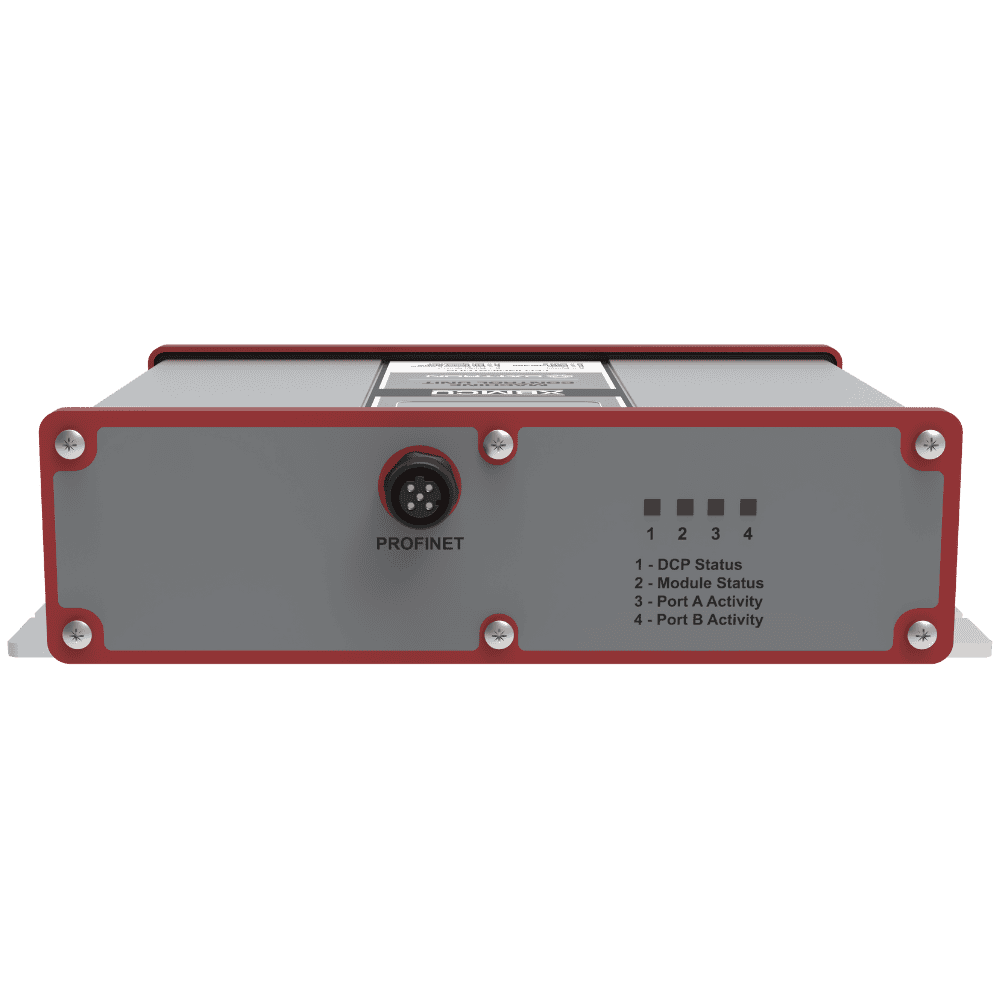

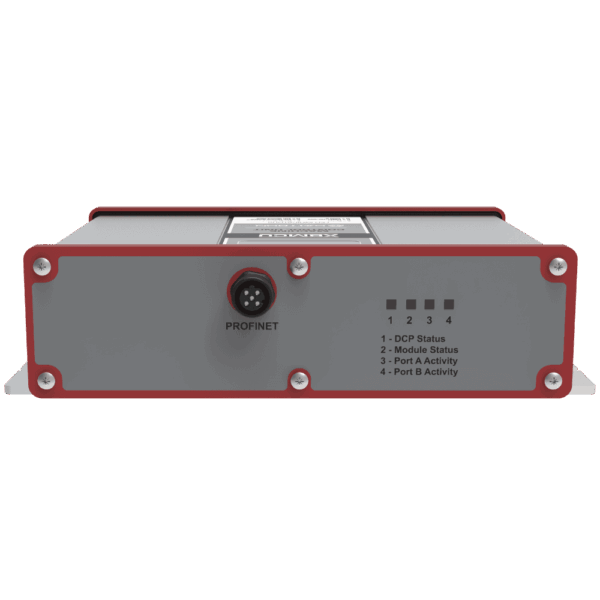

XBMCU is lab-certified for PROFINET^® communications for reliable, real-time data handling with Class C Conformance. A dual CANbus interface supports J1939, CANopen, CAN FD, and CANopen Safety. For North American users, XBMCU will support Ethernet/IP protocol, and future updates will include CIP safety capabilities.

The XBMCU works with the Safe-D-Stop™, all CattronControl™, and the latest generation Remtron™ transmitters.

Protection

IP66

Housing

Robust aluminum fully shielded enclosure for high EMI environments

Operating Range

Up to 1 kilometer / 3820 feet, including feedback

Interface

• Dual CANbus interface that supports J1939, CANopen, CAN FD, and CANopen Safety
• Modbus RS-485 supports controller/machine modes
• Ethernet IP with CIP safety capabilities

Closed Box Configuration

Configuration, programming, and analytics over wireless or Ethernet

Black Channel Communication

PL-d safety level based on black channel telegram for both control and feedback, and a redundant dual-processor architecture

CattronLink Management Software

CattronLink enables continuous performance and simplifies configuration and feature upgrades. Available via desktop or mobile app

Diagnostics Data Collection

Data logging and diagnostics memory are logged on the MCU and available

Power Supply

Wide range 9-36 VDC supply

Inputs / Outputs

• Eight digital inputs
• Six 3A PL-d digital outputs

Safety

• Category 3 PL-d
• Modbus TCP/IP
• Ethernet IP
• PROFINET
• PROFIsafe (under certification)

ISO Certification

Manufactured in an ISO 9001:2015 certified operation
