Tyro 2X2

Description

The Tyro™ 2X2 brings powerful, hassle‑free wireless control to your lifting operations. Purpose‑built for small overhead cranes, hoists, jib cranes, and monorail systems, it delivers the perfect blend of simplicity, speed, and rock‑solid reliability—so your team can stay productive and confident on every lift.

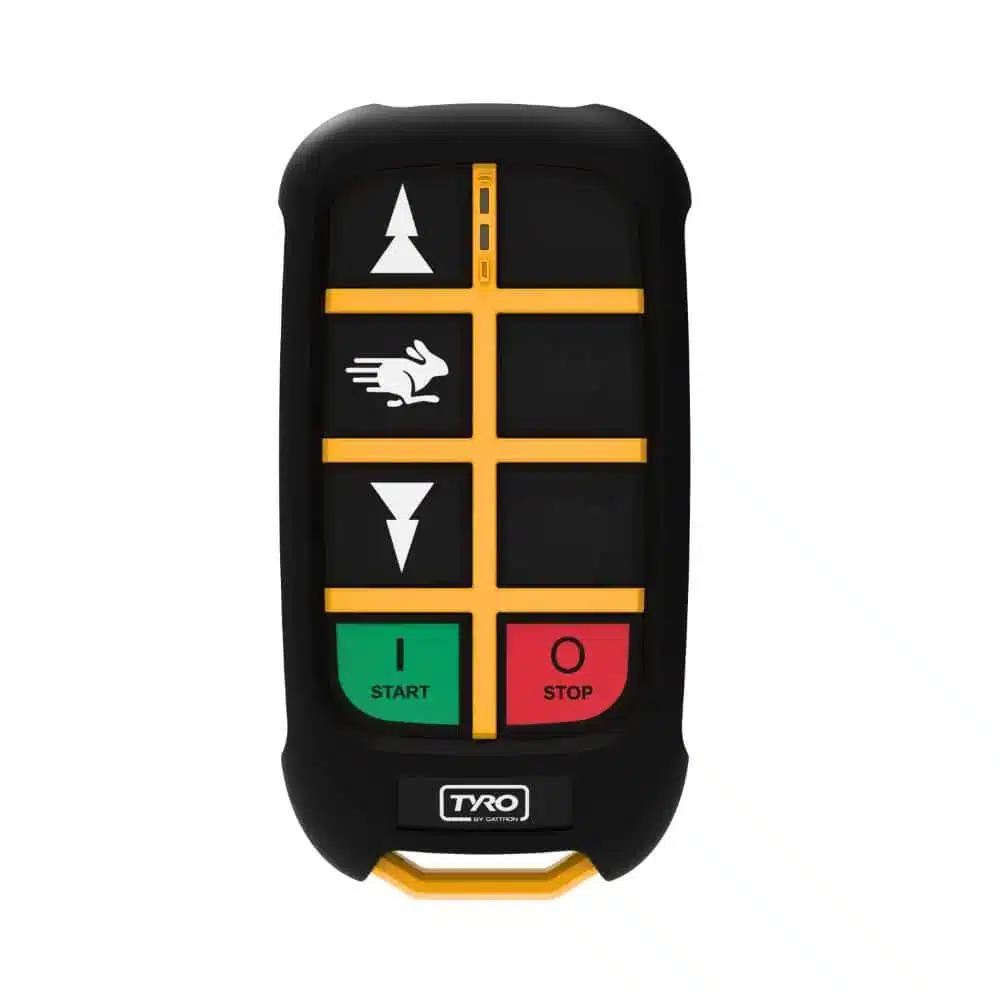

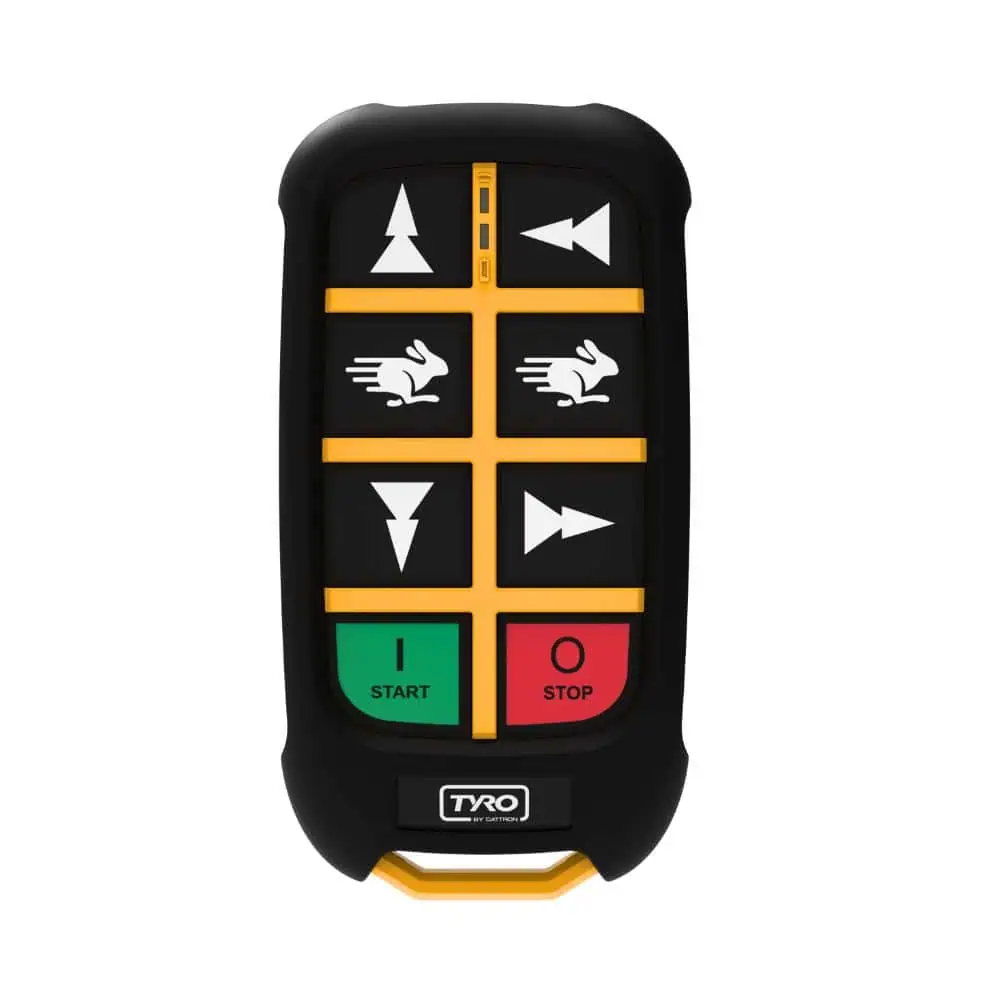

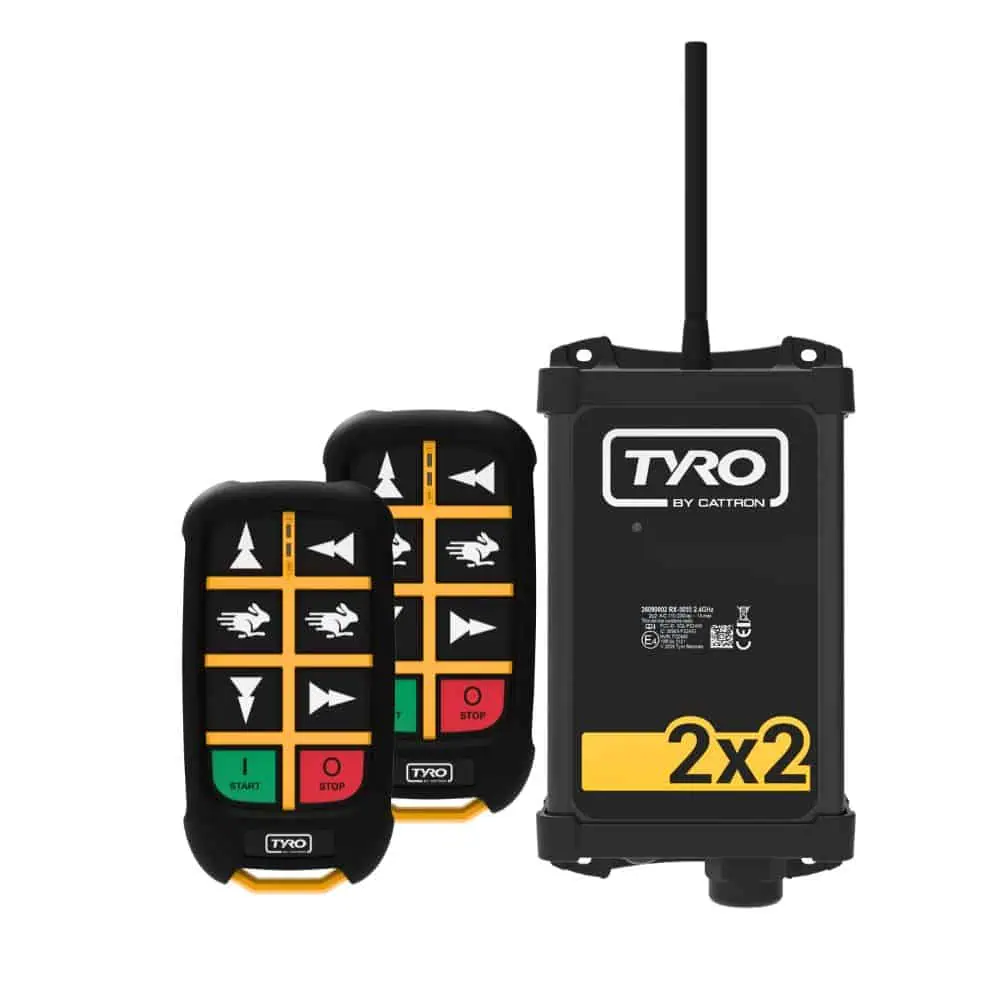

At the heart of the system are two ultra‑compact Musca 2S transmitters, engineered with tactile push buttons, a bright backlit keypad, and a rugged IP67 rubber housing that stands up to tough industrial environments. Paired with Tyro’s proven wireless platform, the 2X2 gives operators smooth, precise control of up to two motions with intuitive two‑speed operation. Four configuration options—2X2, 1X2, 2X1, and 1X1—ensure the perfect fit for your application.

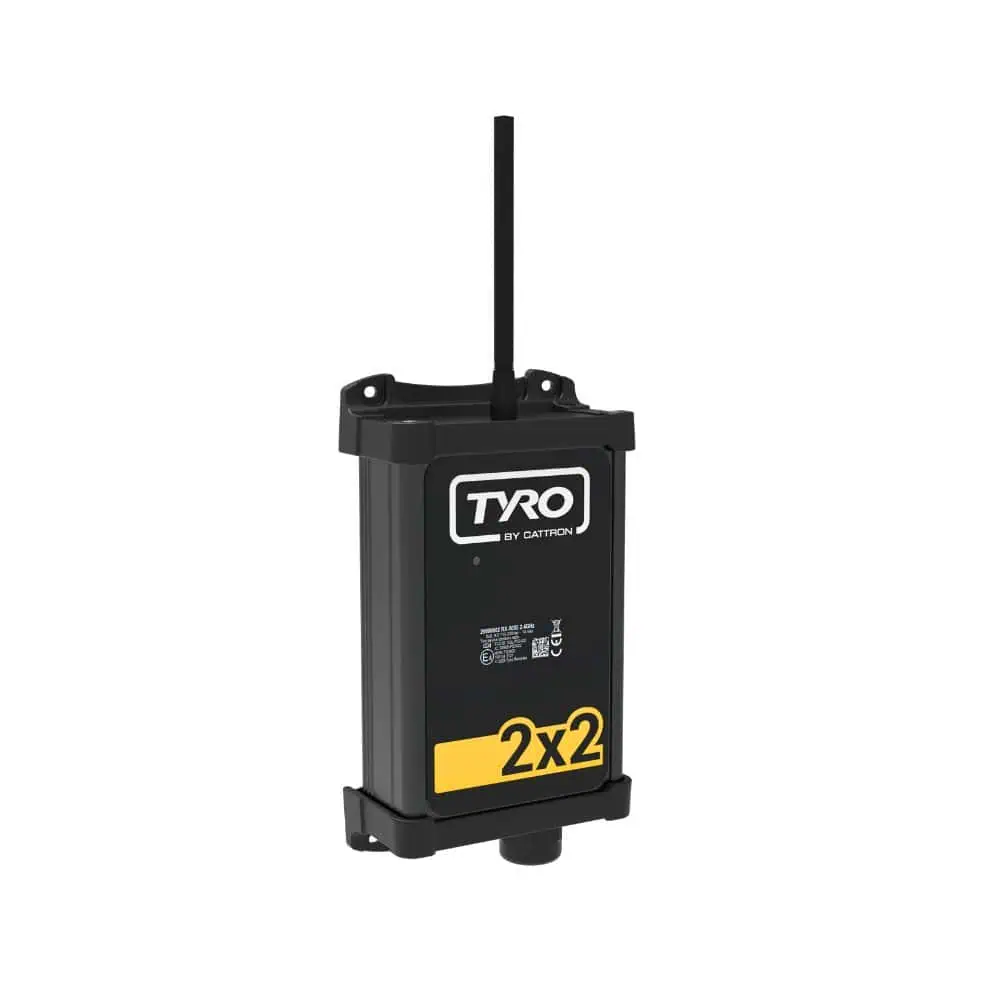

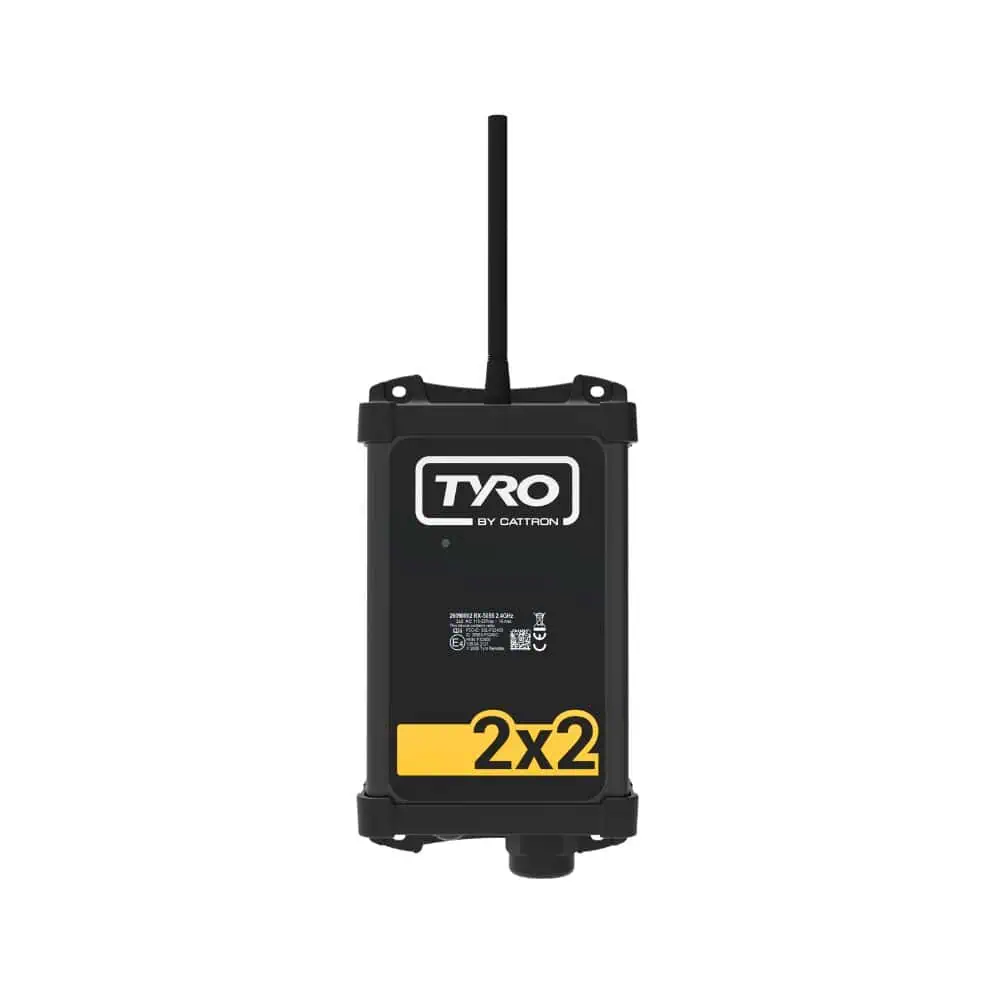

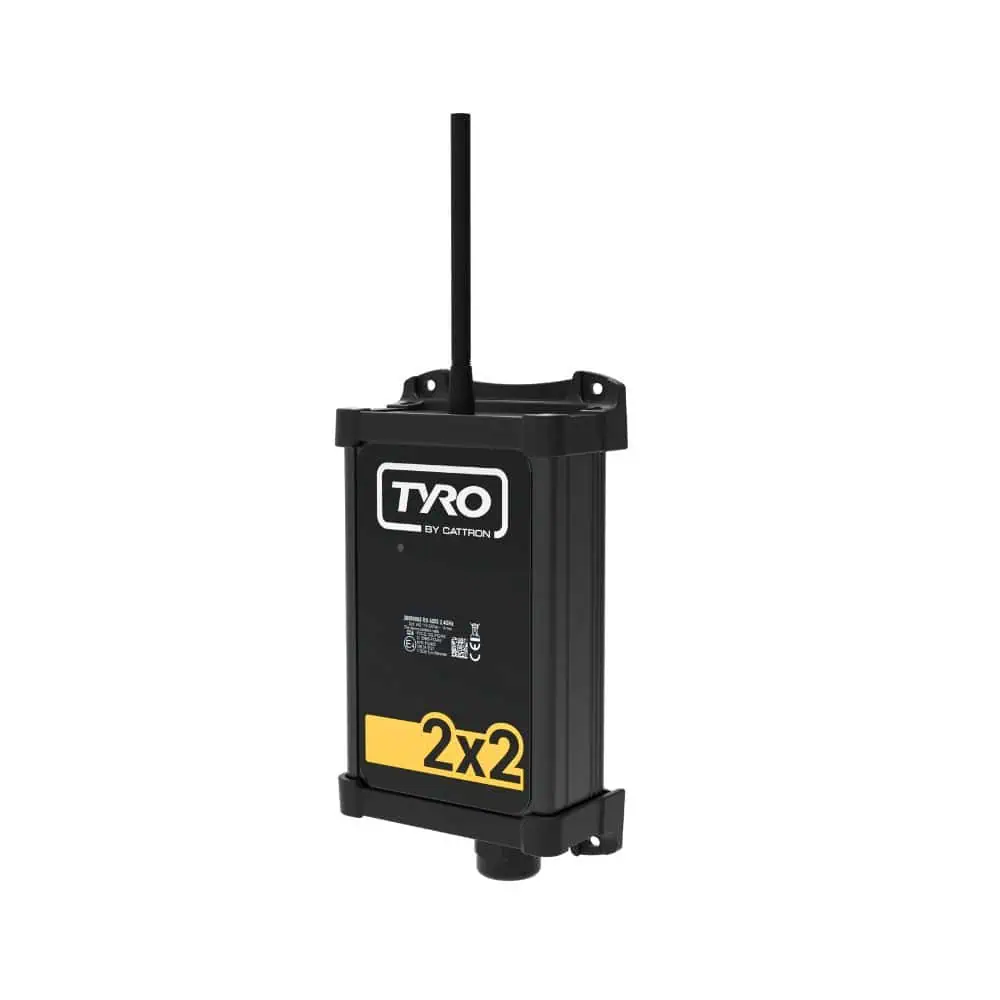

Installation is fast and frustration‑free. With true plug‑and‑play pairing, your system is up and running in under 15 minutes. Adaptive frequency technology keeps communication stable and interference‑resistant, while the low‑profile receiver—UL 94‑V0 flame‑rated for safety—mounts easily in tight spaces. The complete package is fully CSA Certified (C22.2 #33:2023), giving you confidence that it meets today’s highest standards.

The result: a compact, dependable wireless control solution that boosts efficiency, enhances operator comfort, and keeps your lifting operations moving.

Features:

Protection

• • IP67-rated transmitter – Read about IP ratings
  • IP65-rated receiver

Housing

• • Transmitter: impact-resistant and shock-absorbing rubber
  • Receiver: high-impact polymer

Button Layout

• • Up to six pushbuttons plus start/stop with two LED

Backlit Keyboard

An automatic backlit keyboard ensures optimal and safe use day and night

Configurations

• • 2X2: Two motion, two speed

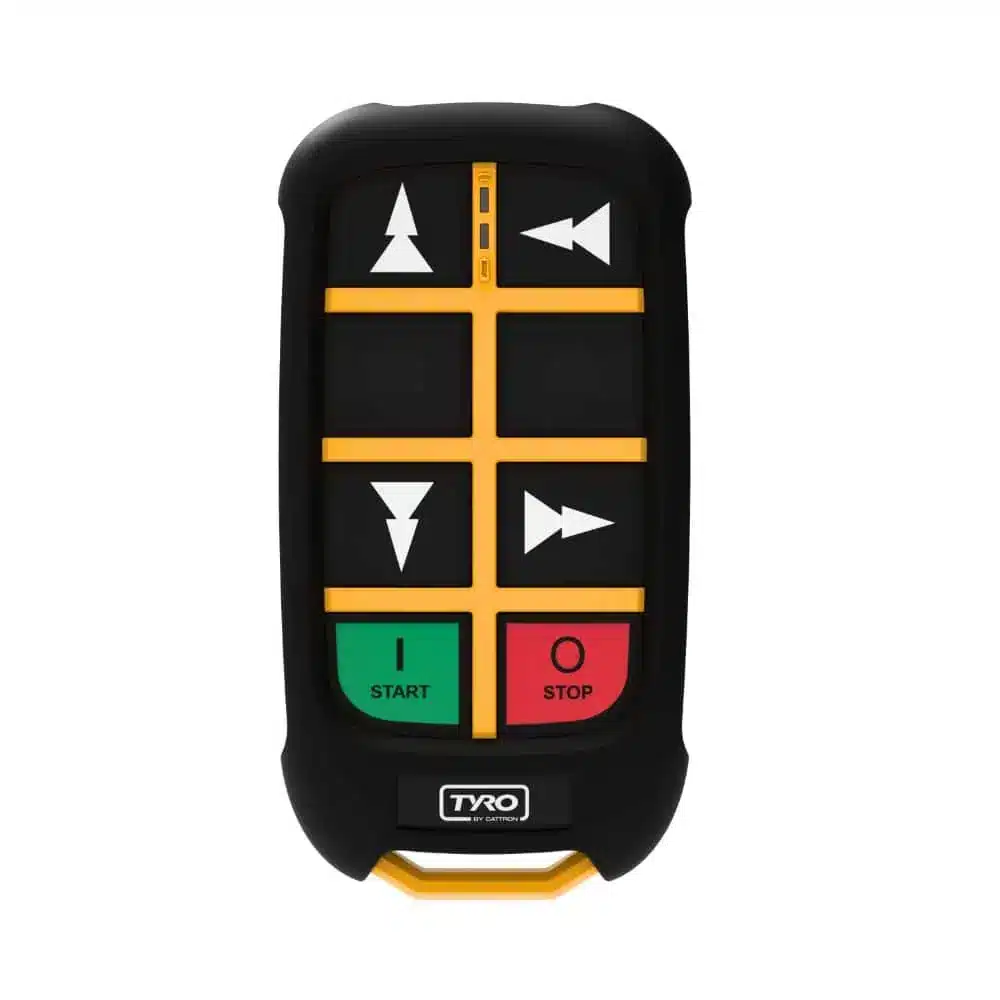

  • 2X1: Two motion, one speed
  • 1X2: One motion, two speed

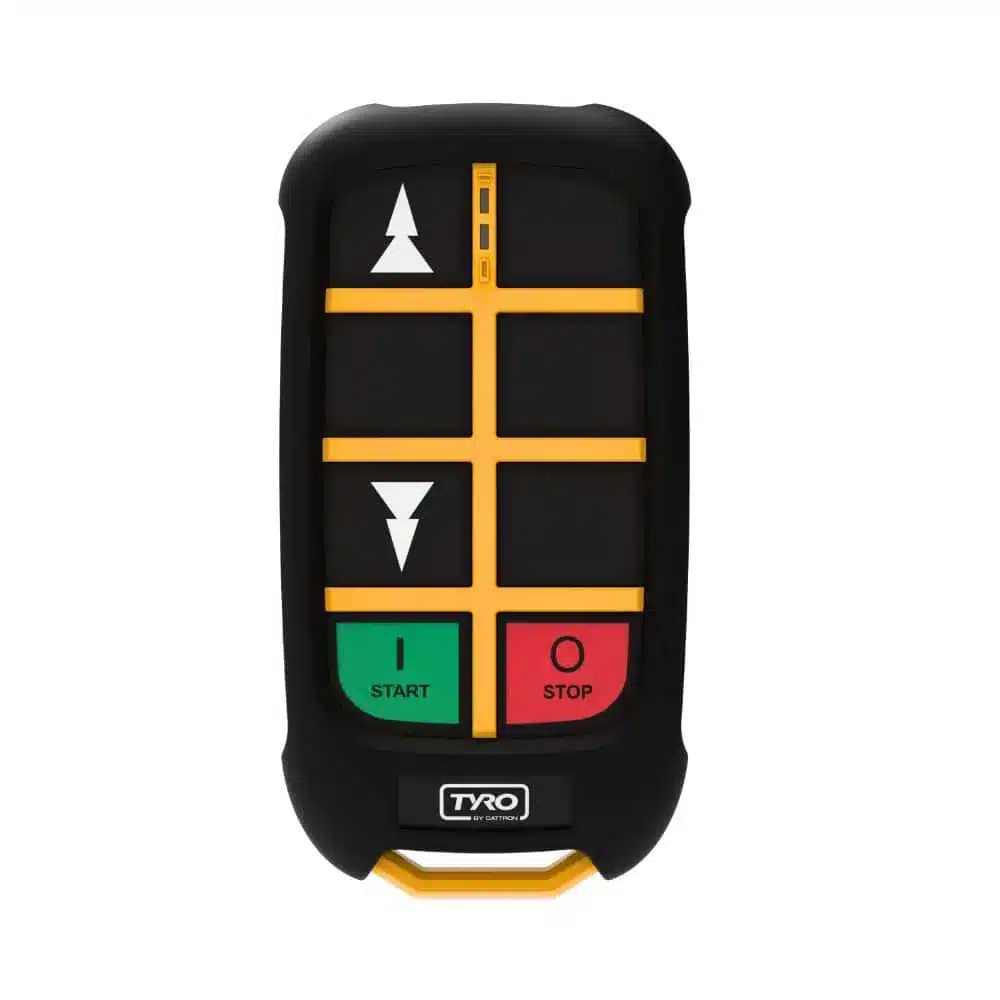

  • 1X1: One motion, one speed

Frequency

• • 2.4 GHz with frequency hopping

Communication Mode

Simplex

Battery

• • Two standard 1.5V AA alkaline batteries
  • Six-month battery life with typical use

Power

Receiver: 24-48 VDC or 110-230 VAC

Safety & Compliance

• • FCC
  • UL 94-V0
  • CSA C22.2 #33:2023

Antenna

• • Transmitter: integrated antenna
  • Receiver: external; line kit options available
