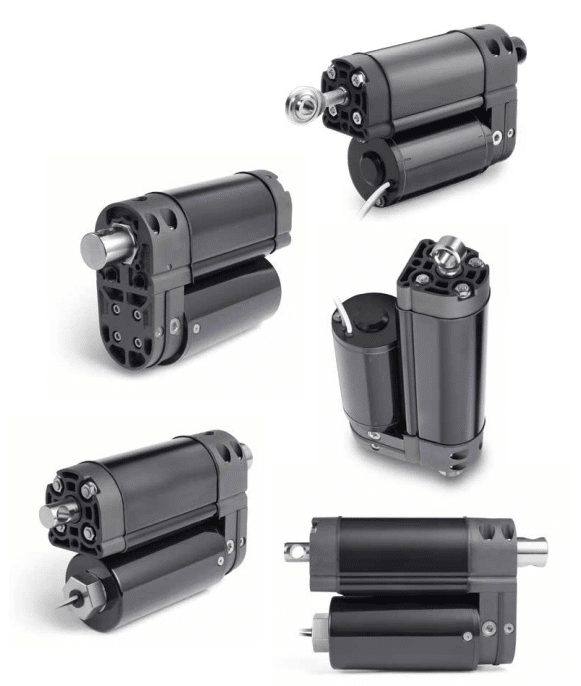

H-Track Electro-Hydraulic Linear Actuator

Description

H-Track Actuator Feature Highlights:

Hydraulic drive delivers up to 4,800 pounds (21,350 N) of force and achieves travel speeds of nearly 4 inches (100 mm) per second.
The anodized aluminum alloy housing resists corrosion and protects from dirt, dust, humidity, and many corrosives.
Temperature operating range of -26ºC to +65ºC (-20ºF to +150ºF) standard / -40ºC to +54ºC (-40ºF to +130ºF) and -18ºC to +80ºC (0ºF to +180ºF) available.

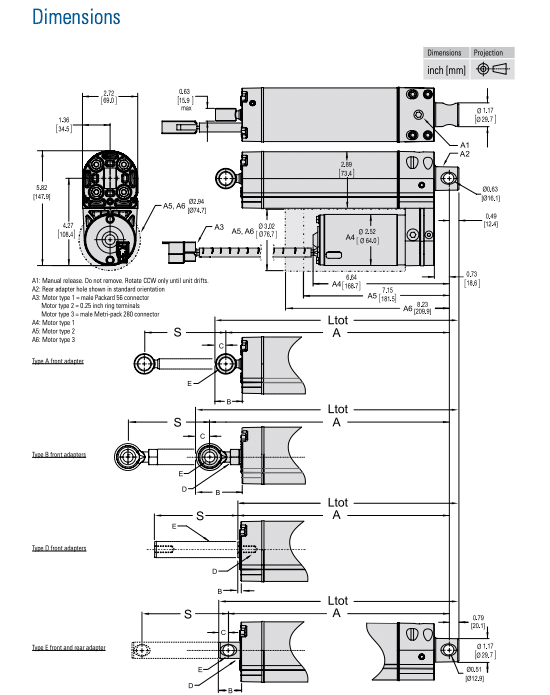

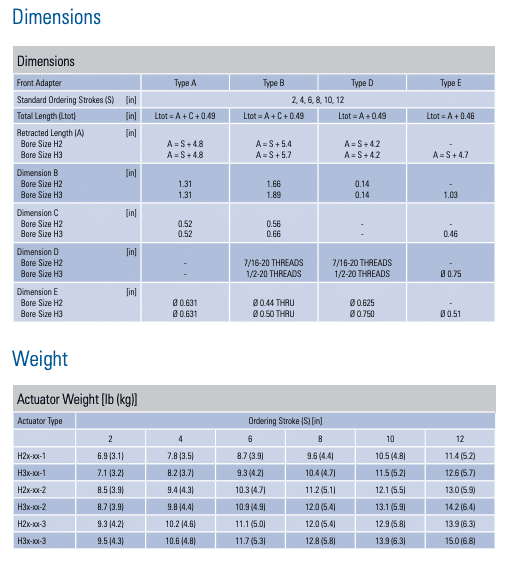

Standard stroke lengths of 2, 4, 6, 8, 10, 12in. (51, 102, 152, 203, 254, 305mm).
IP65 (without marine option) and IP68 dynamic (with marine option), IP65/IP67/IP69K static
Rod does not require torsional restraint.

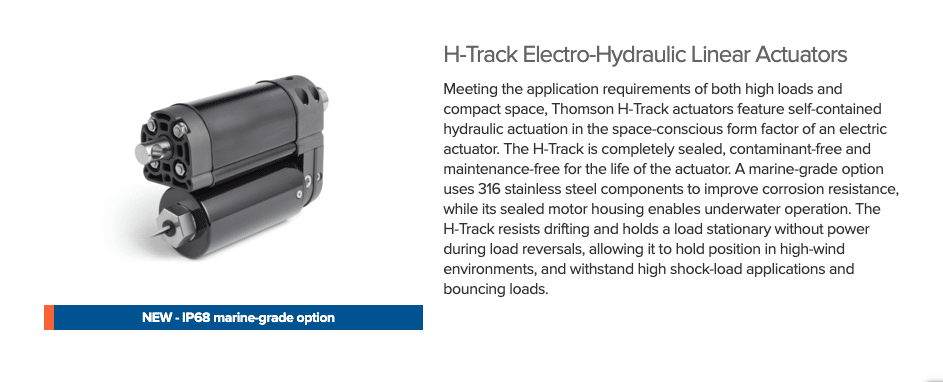

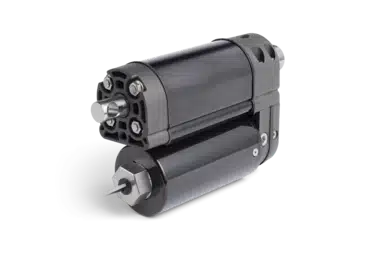

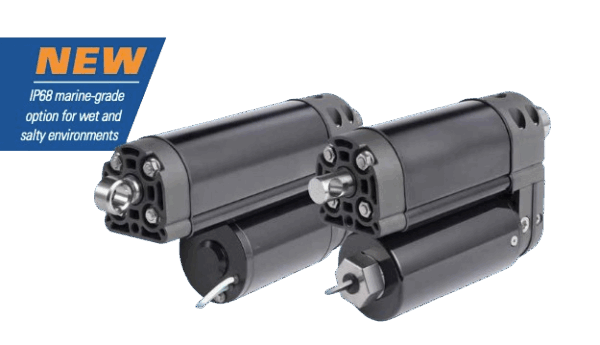

Take your linear motion underwater

The marine-grade option for Thomson H-Track electro-hydraulic actuators utilizes 316 stainless steel components for enhanced corrosion resistance and a sealed motor housing, enabling underwater operation.

Looking for hydraulic cylinders?

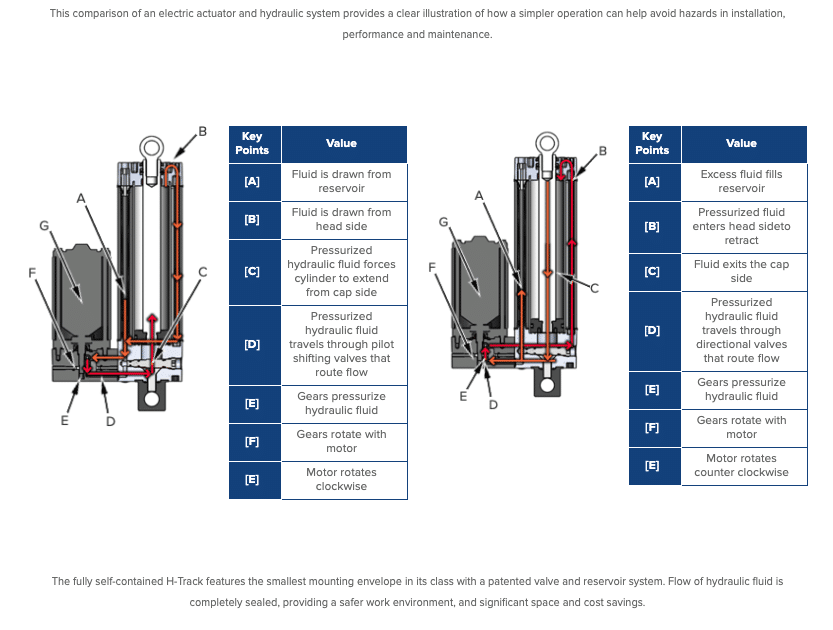

Avoid the messes, complexities, contaminants, and maintenance associated with traditional hydraulic cylinders and consider a solution that provides the best of hydraulic cylinders and electric actuators. Our H-Track electro-hydraulic linear actuator is an all-in-one, self-contained system that can tolerate extreme shock loads, prevent leaks, and features a higher speed profile.

Video

Meeting Marine Application Requirements with Thomson Linear Actuators

The Thomson H-Track electro-hydraulic linear actuator has been designed to tackle the demanding requirements of marine applications. Watch this video to learn more.

H-Track Electro-Hydraulic Linear Actuator: Handling Heavy Loads in Tight Spaces

Learn more about the Thomson H-Track electro-hydraulic actuator, which incorporates a patented fluid power design that provides high load capability for extreme duty use, a more compact pin-to-pin than other actuators of the same load capability, excellent ingress protection, and corrosion resistance.
