AD35 Single Turn Absolute Encoder

The AD35 absolute encoder’s short mounting depth allows for installation in tight motor endbells. With up to 10,000 RPMs, this encoder is suited for high speed servo motor applications.

  • • Short Mounting Depth Allows Installation in Tight Motor Endbells
  • • Up to 10,000 RPM Speed Capability for Majority of Servo Motor Applications
  • • 8mm Hubshaft Mount for Easy Installation
Categories: , , , , , , , Tags: , , , ,

Description

Description
The AD35 is designed for integration into BLDC servo motors allowing digital feedback to drive the motion controller. The AD35 is the shortest hollow-shaft encoder worldwide.
Industries
• Factory Automation

• Servo Motor
Applications
• Medical

• Measuring Instruments

• Military

• Robotics

Technical Information

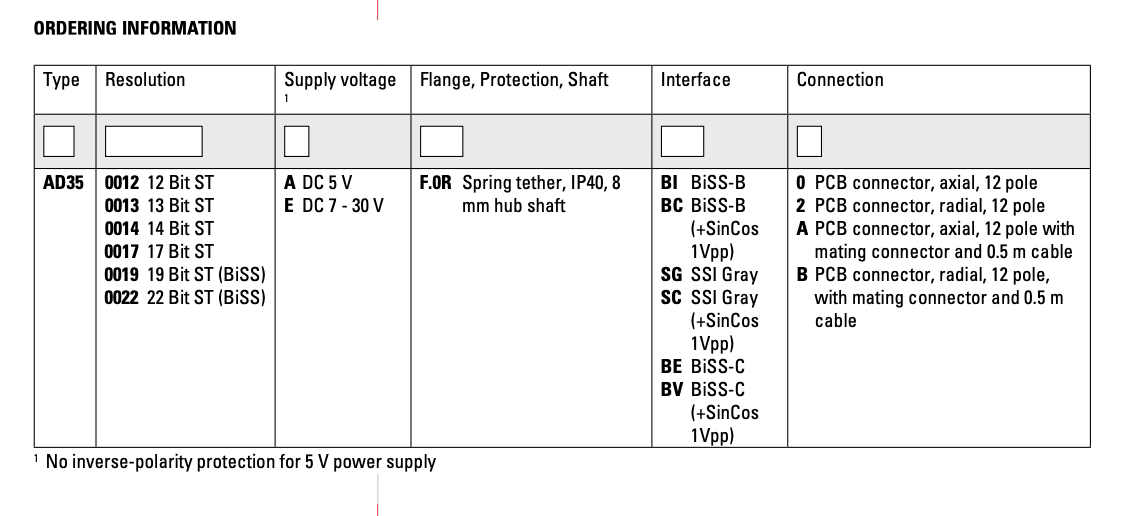

AD35 Data Sheet
Drawing
AD35 CAD Drawing

General
Feedback Type Absolute
Technology Optical
Mounting Configuration 38mm Hubshaft, 2-Hole Tether
Mechanical
Encoder Size (Flange) 38mm
Hollow Bore Size 8mm Hubshaft
Housing Material Aluminum
Max. Operating Speed 10,000 RPM
Electrical
Resolution (pulses/revolution) 12-19 Bit Single-turn
Supply Voltage 5VDC, 7-30VDC
Interfaces
  • SSI
  • BiSS
  • SSI Sin/Cos
Environmental
Protection Class (IP) IP40
Approvals / Certifications CE, ROHS
Operating Temperature Range -15ºC to 100ºC
Storage Temperature -15ºC to 85ºC
Enviroment Non-Hazardous

Downloads

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

AD35 Download [195.00 B]

Loader Loading...
EAD Logo Taking too long?

Reload Reload document
| Open Open in new tab

AD35 CAD Drawing [195.00 B]

Ready to Purchase

    Are you interested in the product? Give us a call at 303-692-0290 or simply fill out the form below.

    Related products

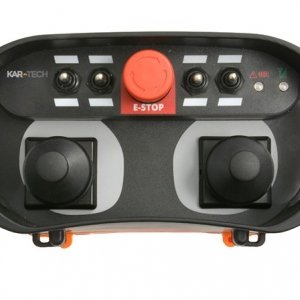

    Quantum Series Remote ControlServo Linear Actuator with Integrated SAE J1939 CAN Bus Controller
