Probe Buddy™ - UPC Marathon | Anderson Controls

Probe Buddy™ – UPC Marathon

The hand-held device operates as a probe test meter and a probe signal simulator
Enables non-experts to perform probe troubleshooting procedures like an expert
Accepts selectable TC and mV inputs from any oxygen probe
Outputs selectable TC and mV signals to simulate an oxygen probe
Performs a probe impedance test when connected to a probe
Computes carbon, dew point, and oxygen in input and output mode
Specific probe connection cables available, no hard wiring required
Easy access connection

Description

NEW PRODUCT

Oxygen Probe Simulator & Tester

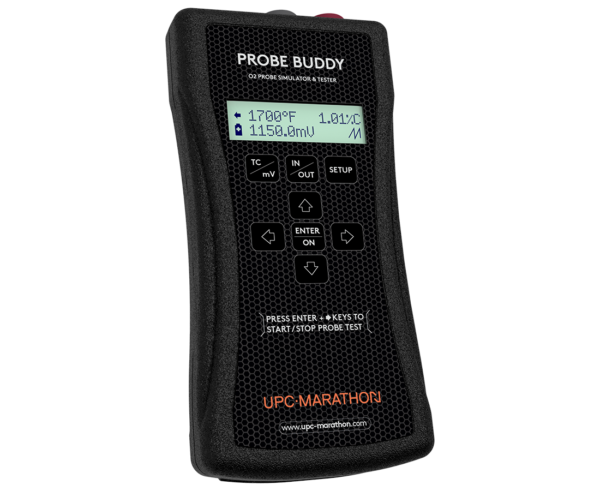

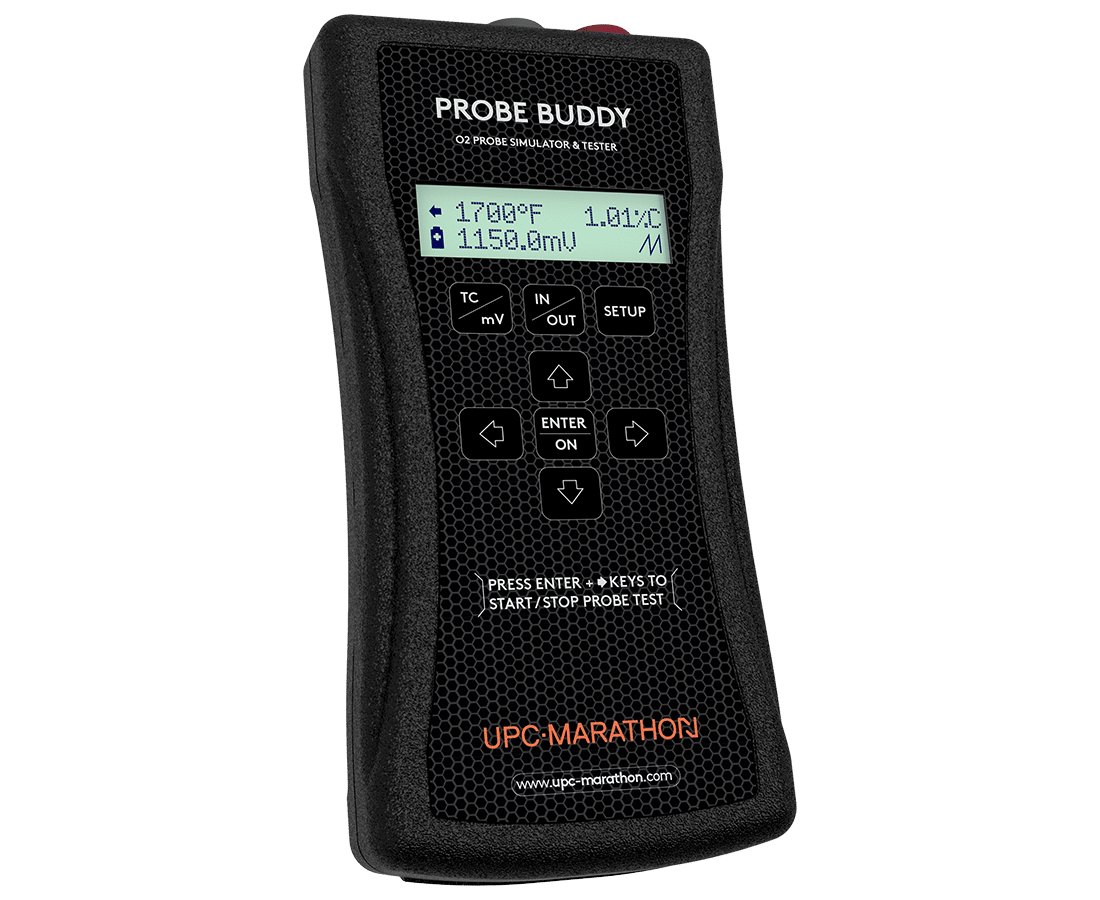

Probe Buddy™ is a smart testing device that checks the integrity and health of an oxygen probe from United Process Controls and from other manufacturers. It’s also used to imitate the output signals of a working probe to check the scaling and operation of the process control system.

Troubleshoot problems with your probe and control system
Assess the probe’s usability and performance
Verify controller’s input performance
Eliminate unneeded replacement of non-defective probes

Power	9V Battery
Operating temperature	5-550 °C (41-1,310 °F)
Storage temperature	-20-700 °C (-4-1,580 °F)
Dimensions	16.2 x 8.3 x 2.6 cm
	(6.37” x 3.25” x 1.03”)
Weight	1.04 kg (2.3 lb.)
Available processes	Oxygen, dewpoint, carbon
Thermocouples	B, K, R, S
Millivolt range	0-2000mV
